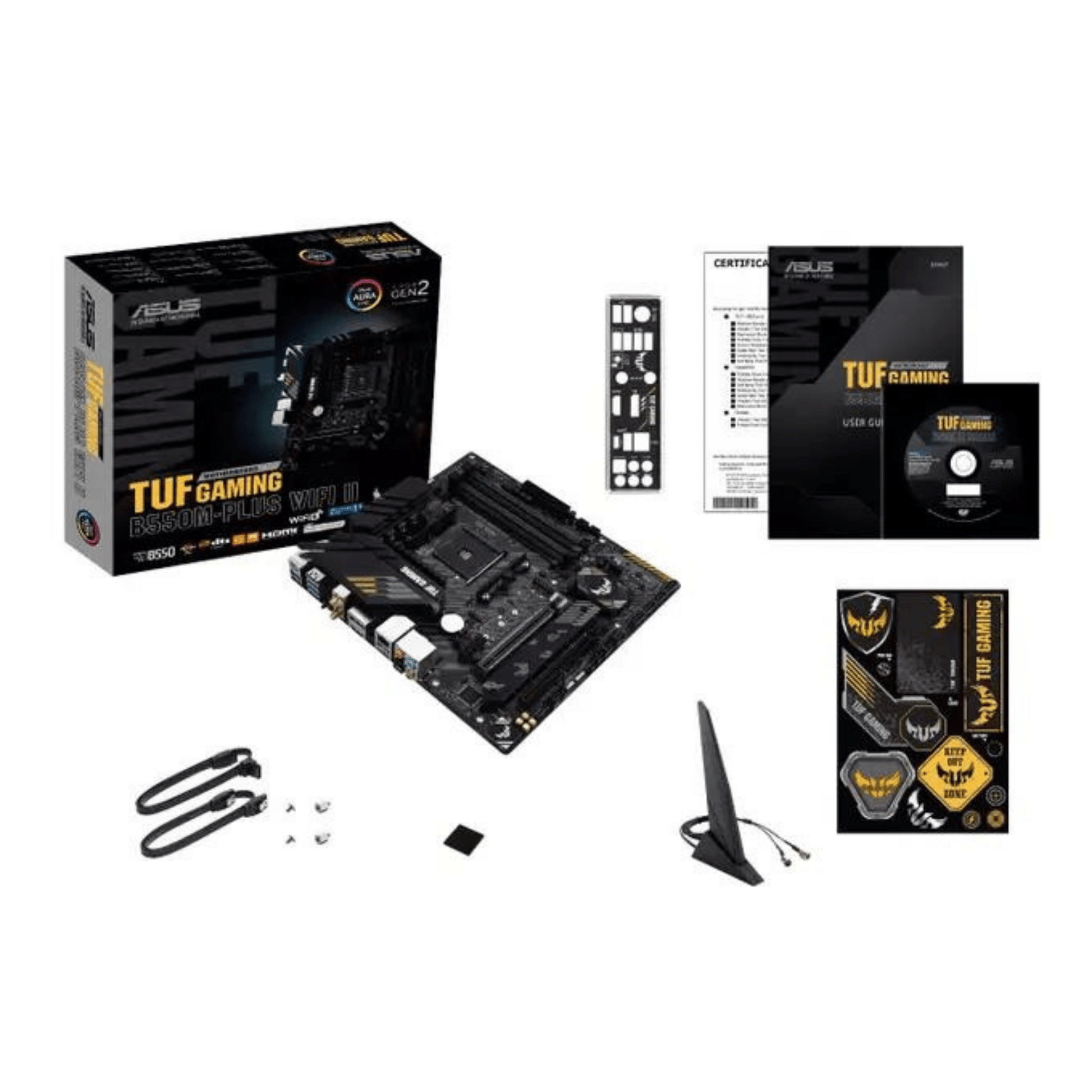

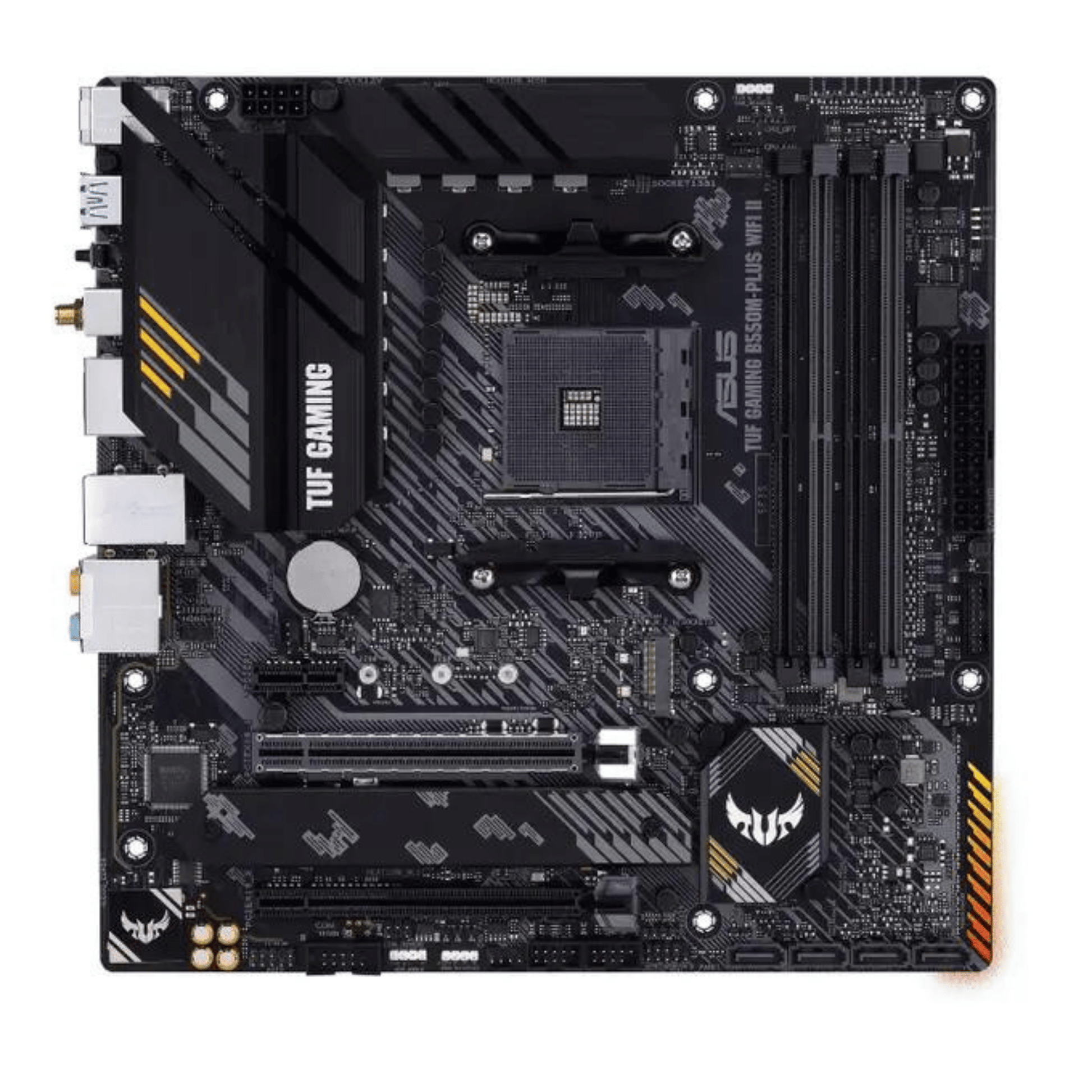

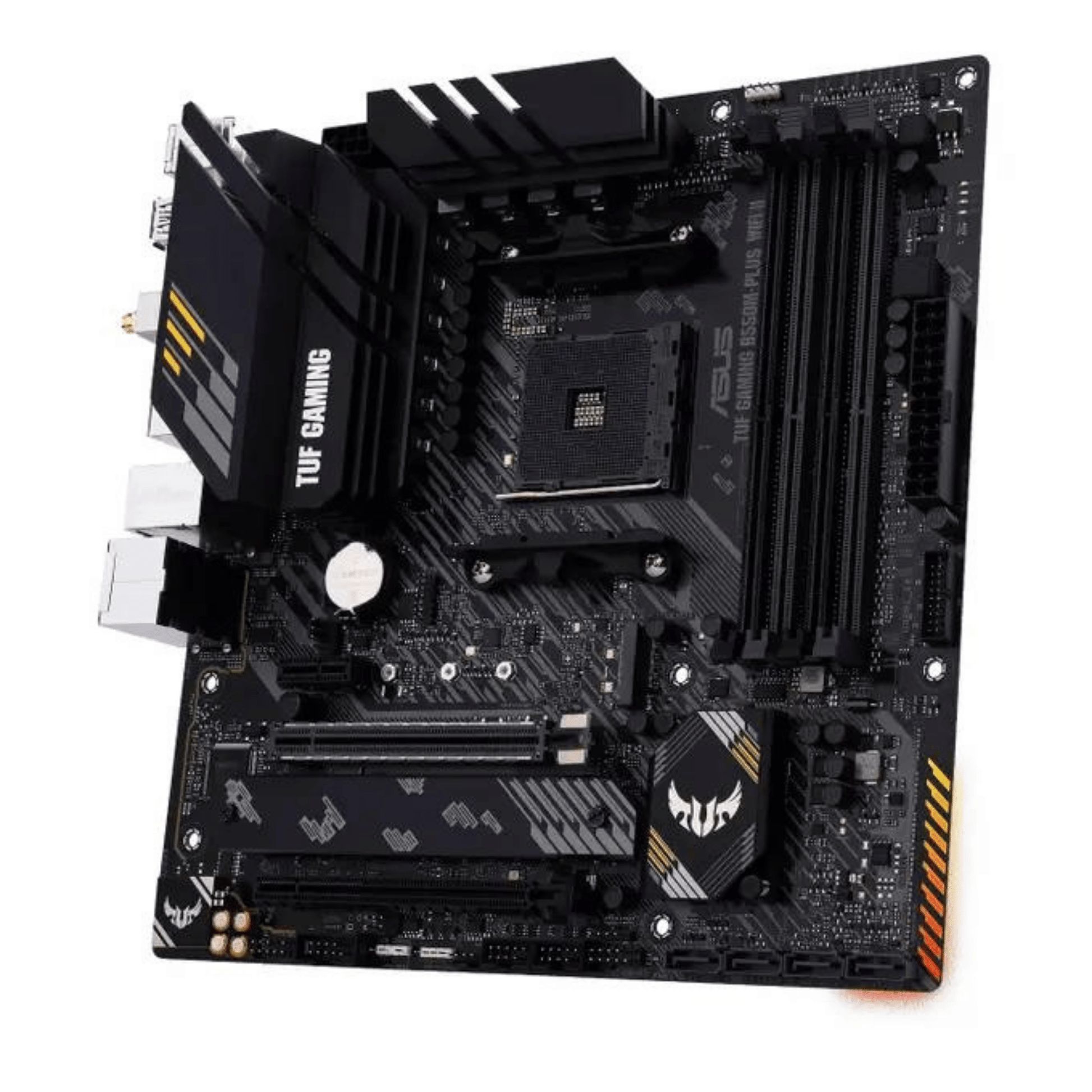

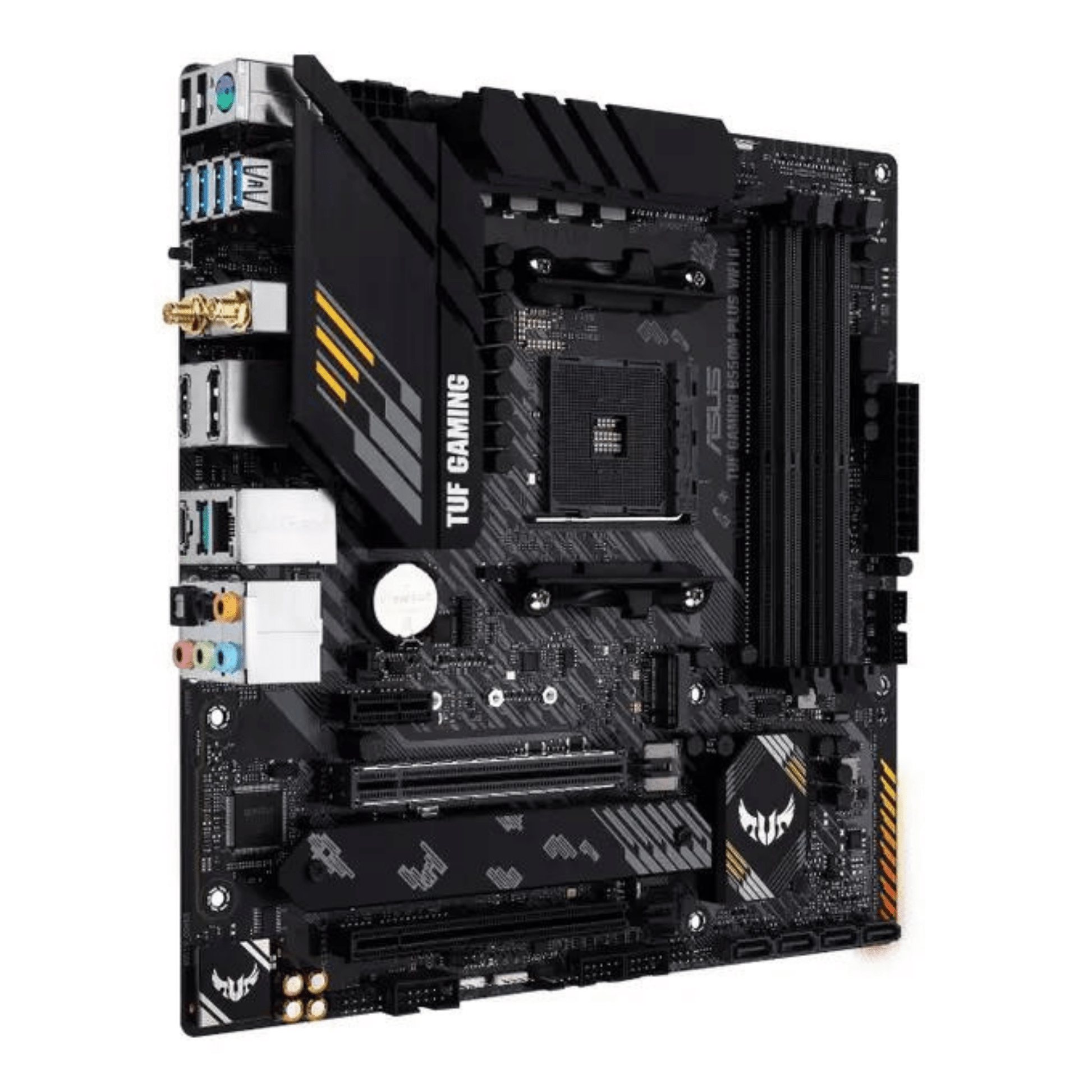

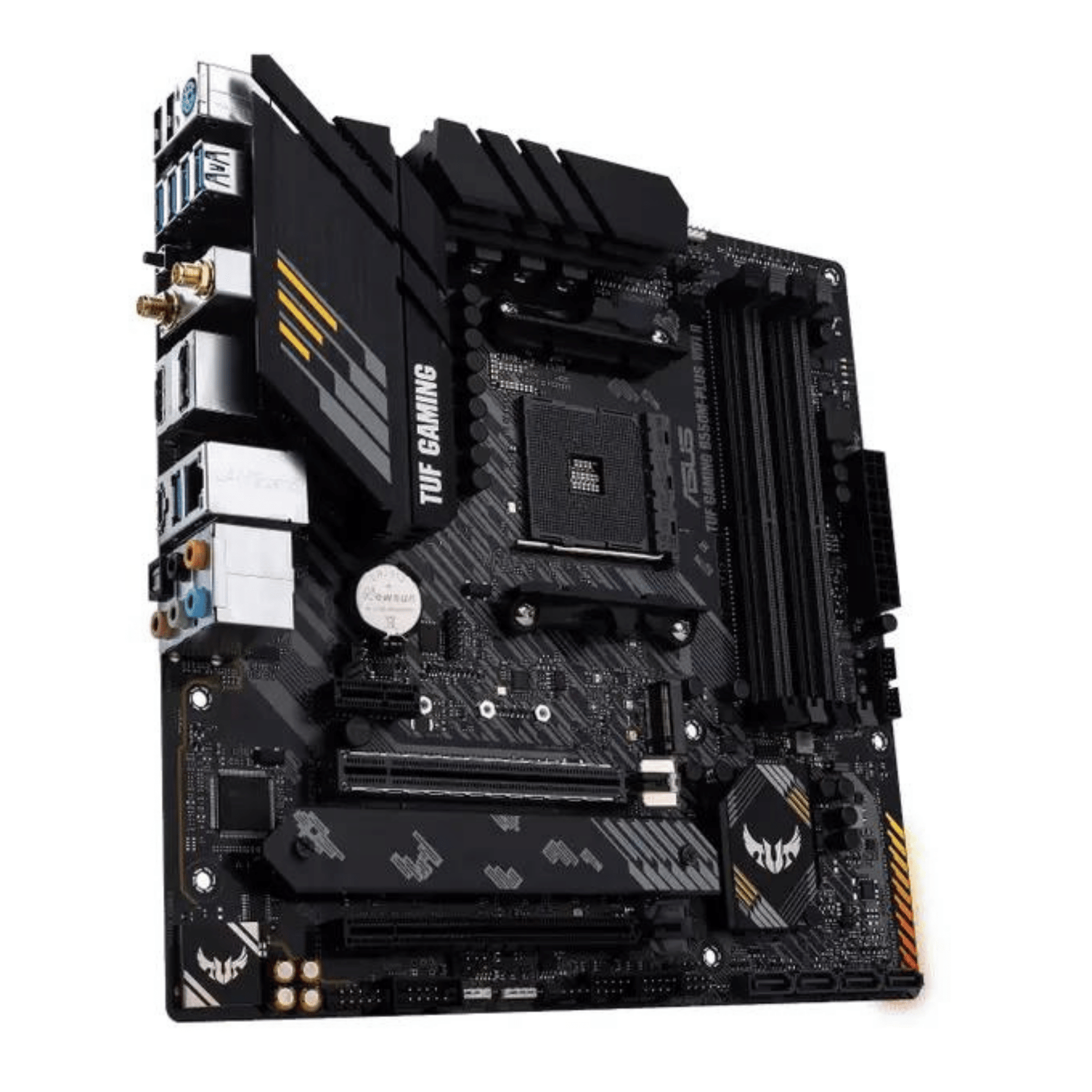

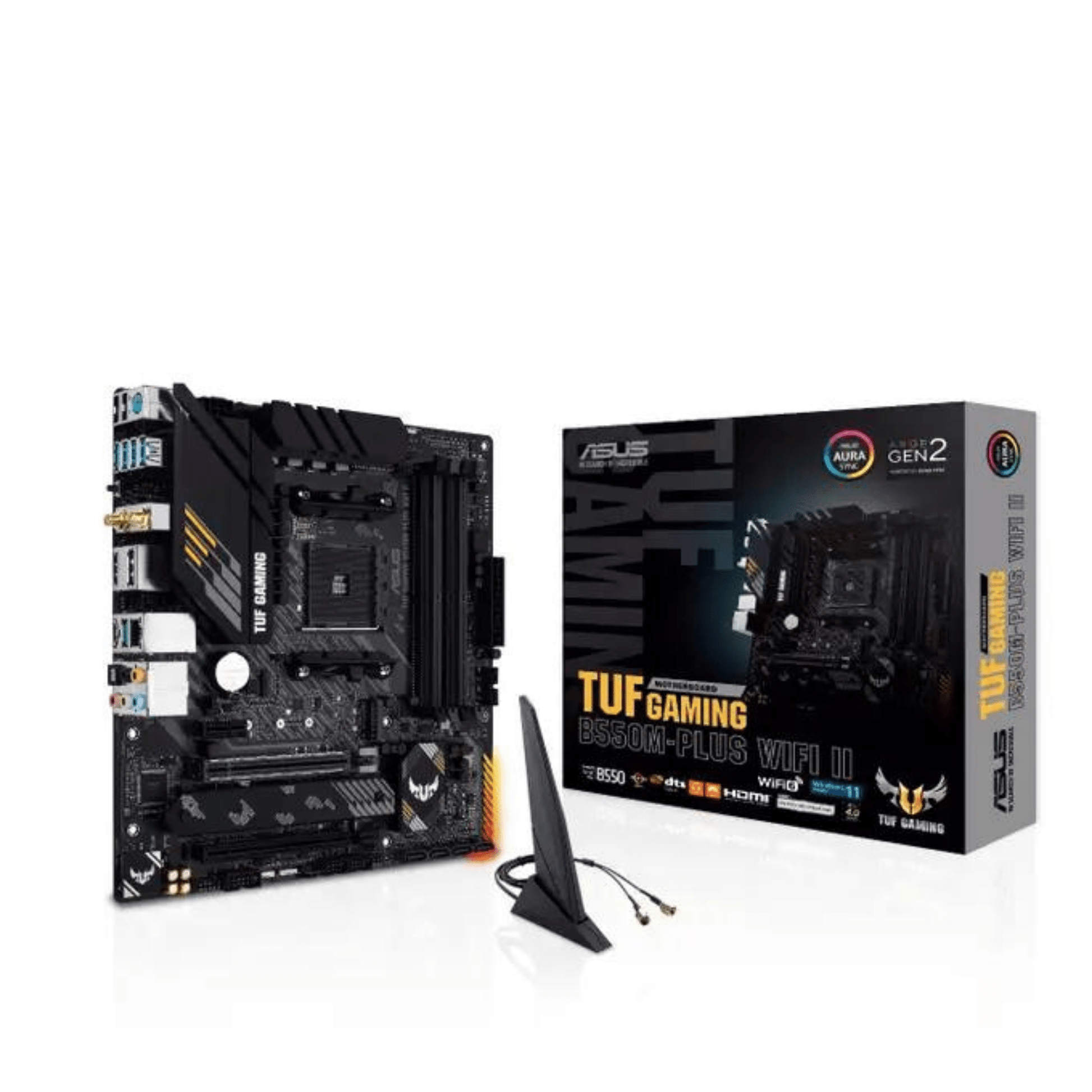

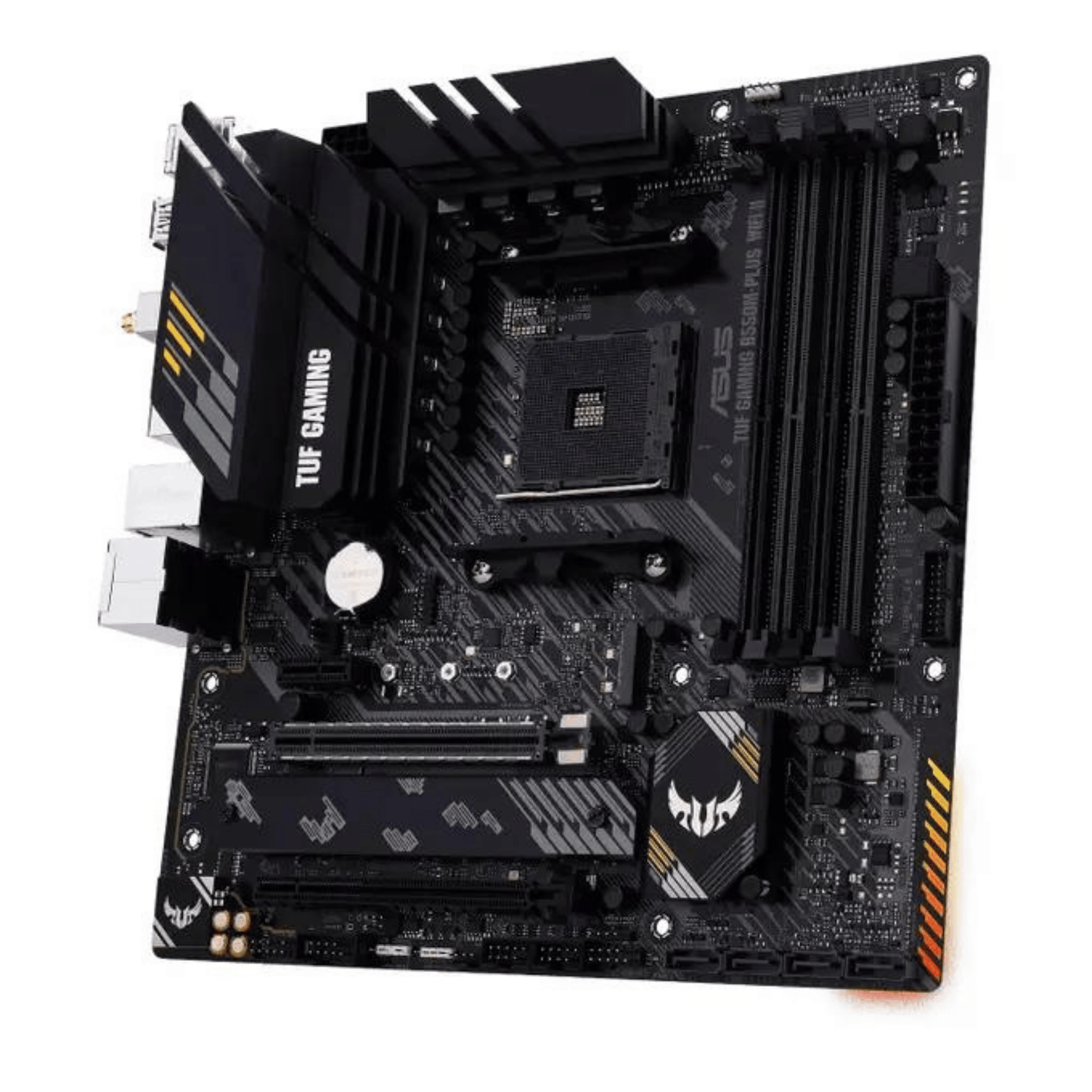

Asus TUF GAMING B550M-PLUS WIFI II Micro ATX AM4 Motherboard

Brand

Asus

Model Number

TUF GAMING B550M-PLUS WIFI II

Warranty Support

3 Years

CPU Socket Type

AM4

Memory Type

DDR4

Outputs

DisplayPort, HDMI

Form Factor

Micro ATX

TUF Gaming B550M-Plus WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Core Specifications

Edition

TUF GAMING B550M-PLUS WIFI IIForm FactormATXCPU SocketAM4ChipsetB550

RAM Memory Support

Memory Type

DDR4

Memory Channel

Dual

Memory Type (ECC)

ECC/Non-ECC

Memory Type (R/U

)UDIMM (Unbuffered)

Memory Speed(Mhz)

4866(OC4800(OC)4600(OC)4466(OC)4400(OC)4333(OC)4266(OC)4200(OC)4133(OC)4000(OC)3866(OC)3733(OC)3600(OC)3466(OC)3400(OC)3333(OC)3200300029332800266624002133

Max. Memory Capacity

128GB

Graphics Support

Primary GPU Interface

PCIe 4.0 (x16)

On-Board Graphics Connectors

HDMI
DisplayPort

Internal Connectivity

Expansion Slots

1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x16 slot (supports x16 mode)
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

SATA Support

SATA 3

RAID Support via

Storage Mode Suppor

tInternal I/O

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

External Connectivity

Network Interface Type

Wired 2.5 Gigabit LAN

Network Chip/Modules

Wi-Fi ModuleWired 2.5 Gigabit LAN

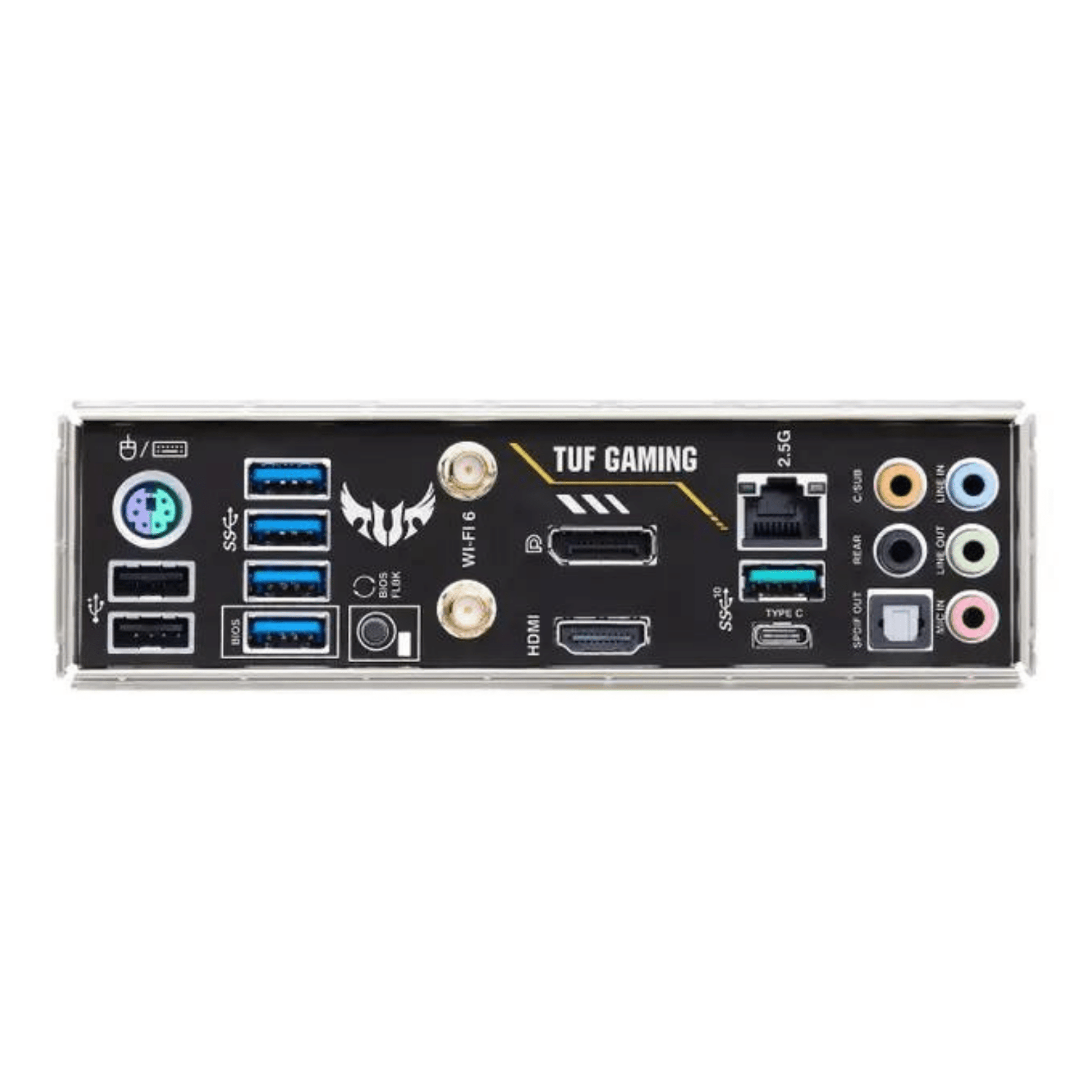

Rear I/O Connectors

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
