Deepcool AK620 68.99 CFM CPU Cooler

• Heatpipe: 6 mm×6 pcs.
• Fan Dimensions: 120×120×25 mm.
• Fan Speed: 500~1850 RPM±10%.
• Fan Airflow: 68.99 CFM.
• Fan Air Pressure: 2.19 mmAq.
• Fan Noise: 28 dB(A).
• Fan Connector: 4-pin PWM.
• Bearing Type: Fluid Dynamic Bearing.
• Fan Rated Voltage: 12 VDC.
• Fan Rated Current: 0.12 A.
• Fan Power Consumption: 1.44 W.

AK620

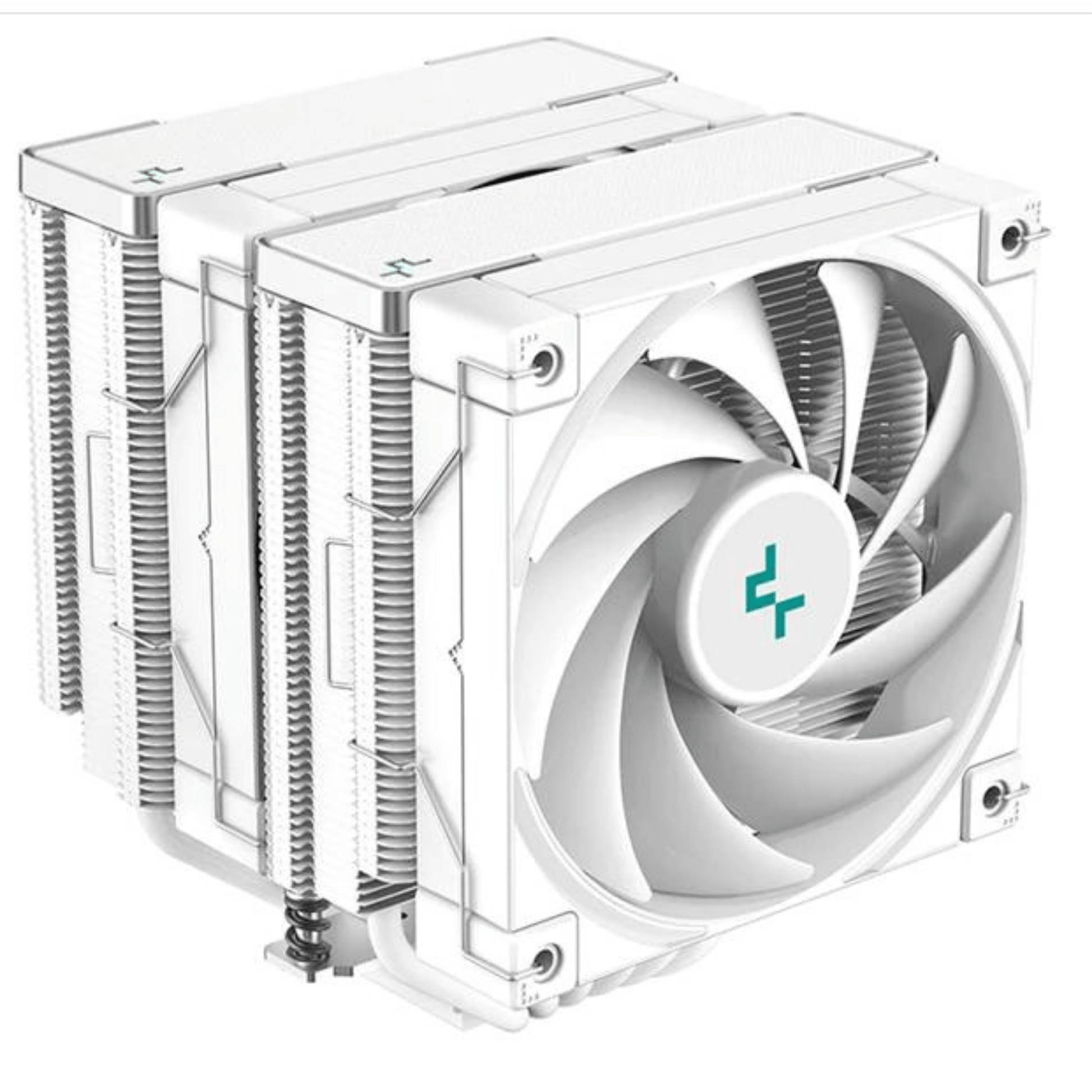

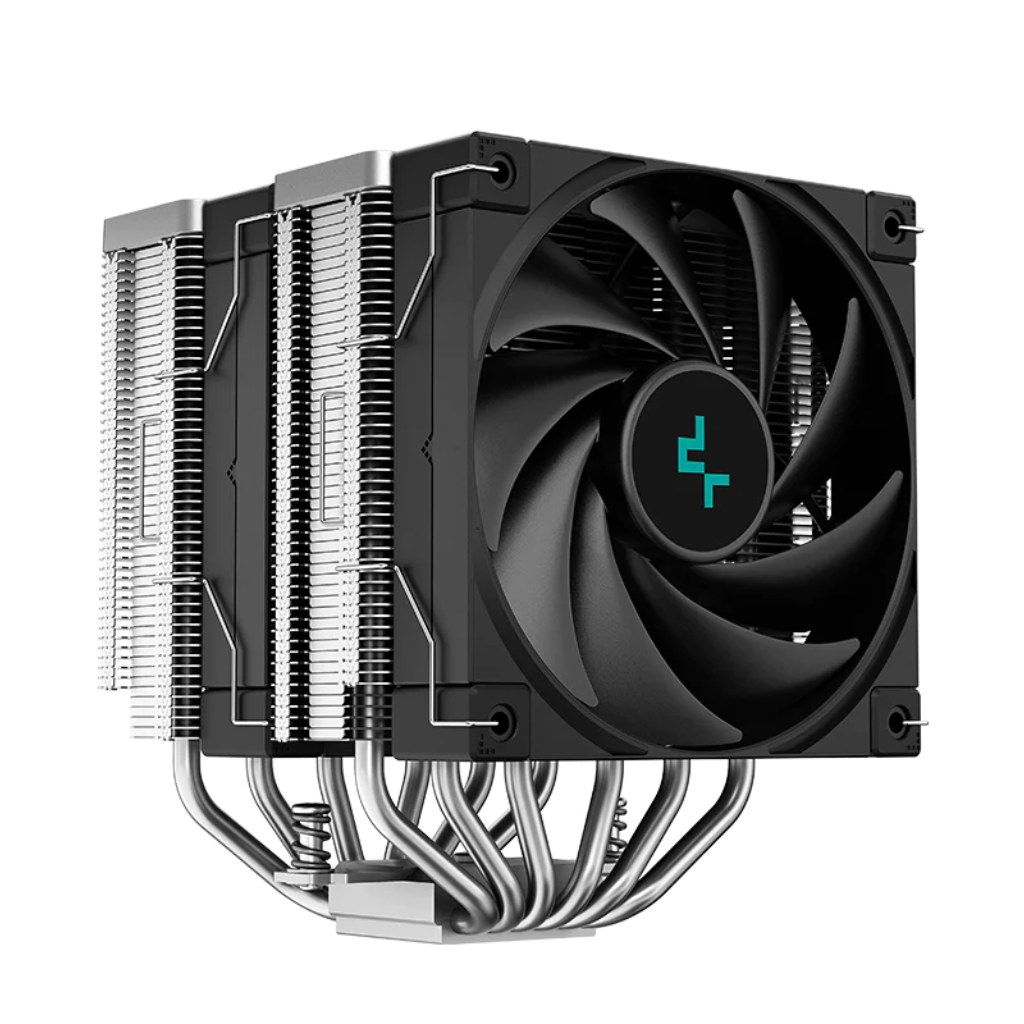

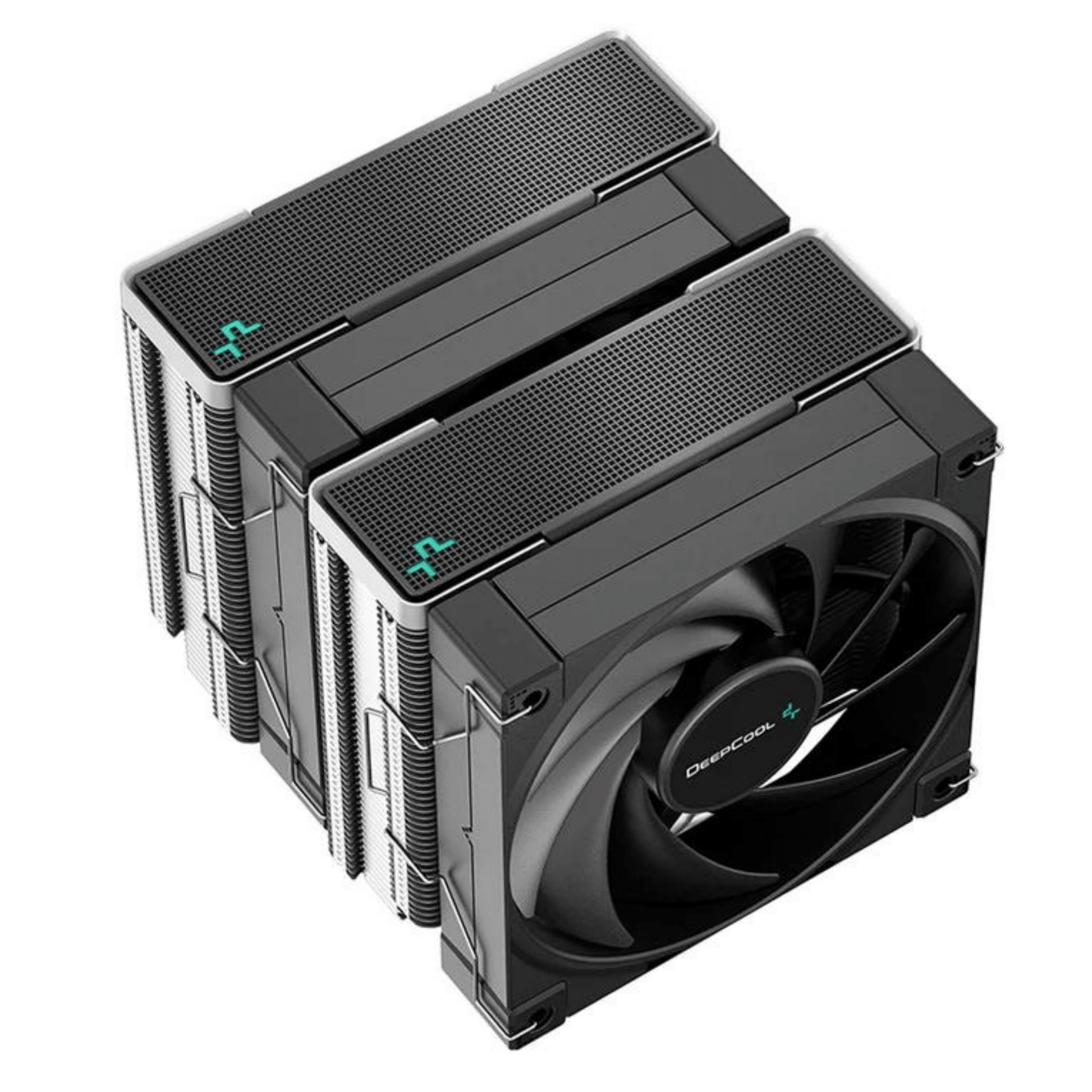

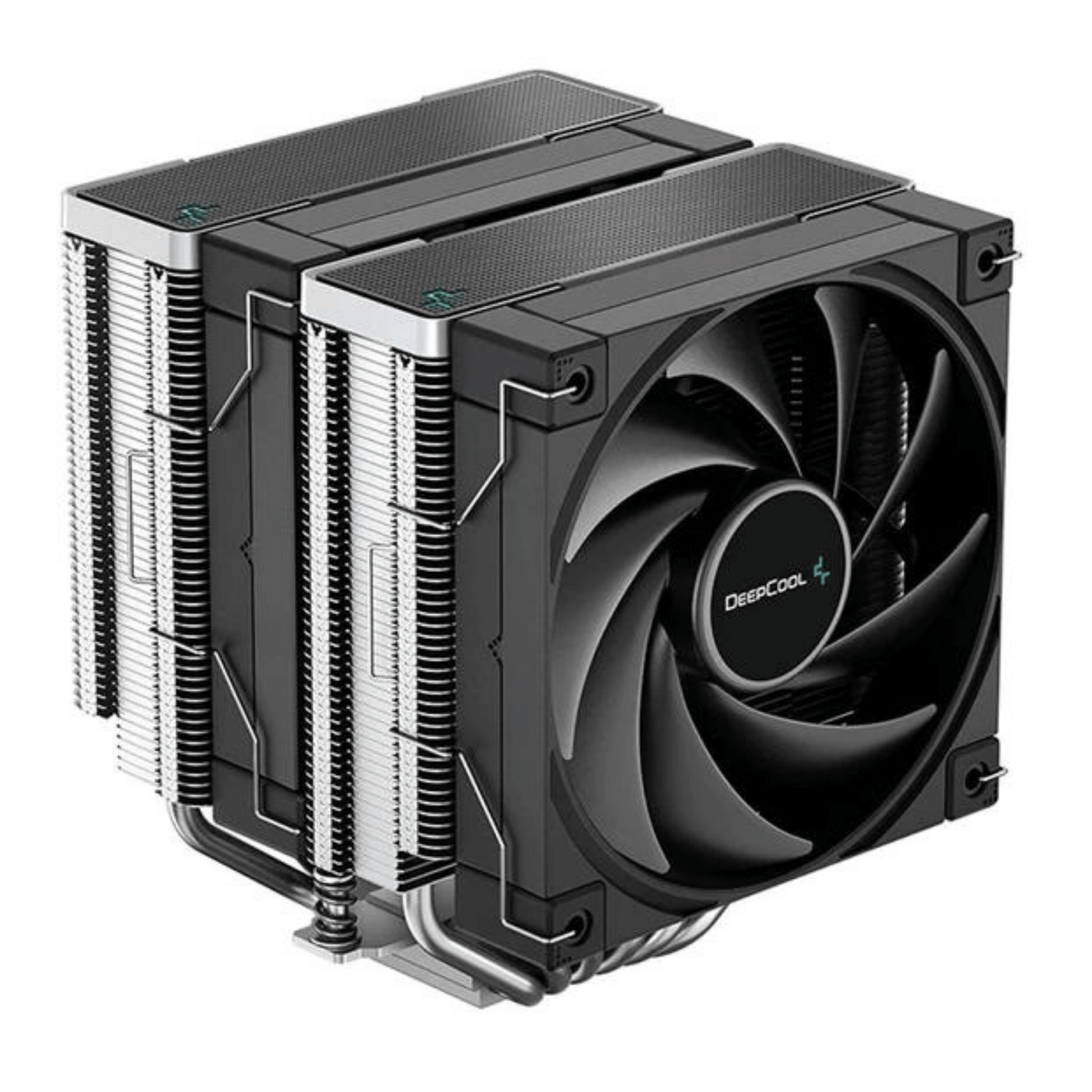

High Performance Dual Tower CPU Cooler
Achieve dominant cooling and silent efficiency with the DeepCool AK620 High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.

UNLOCKED POTENTIAL

Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET, AND POWERFUL

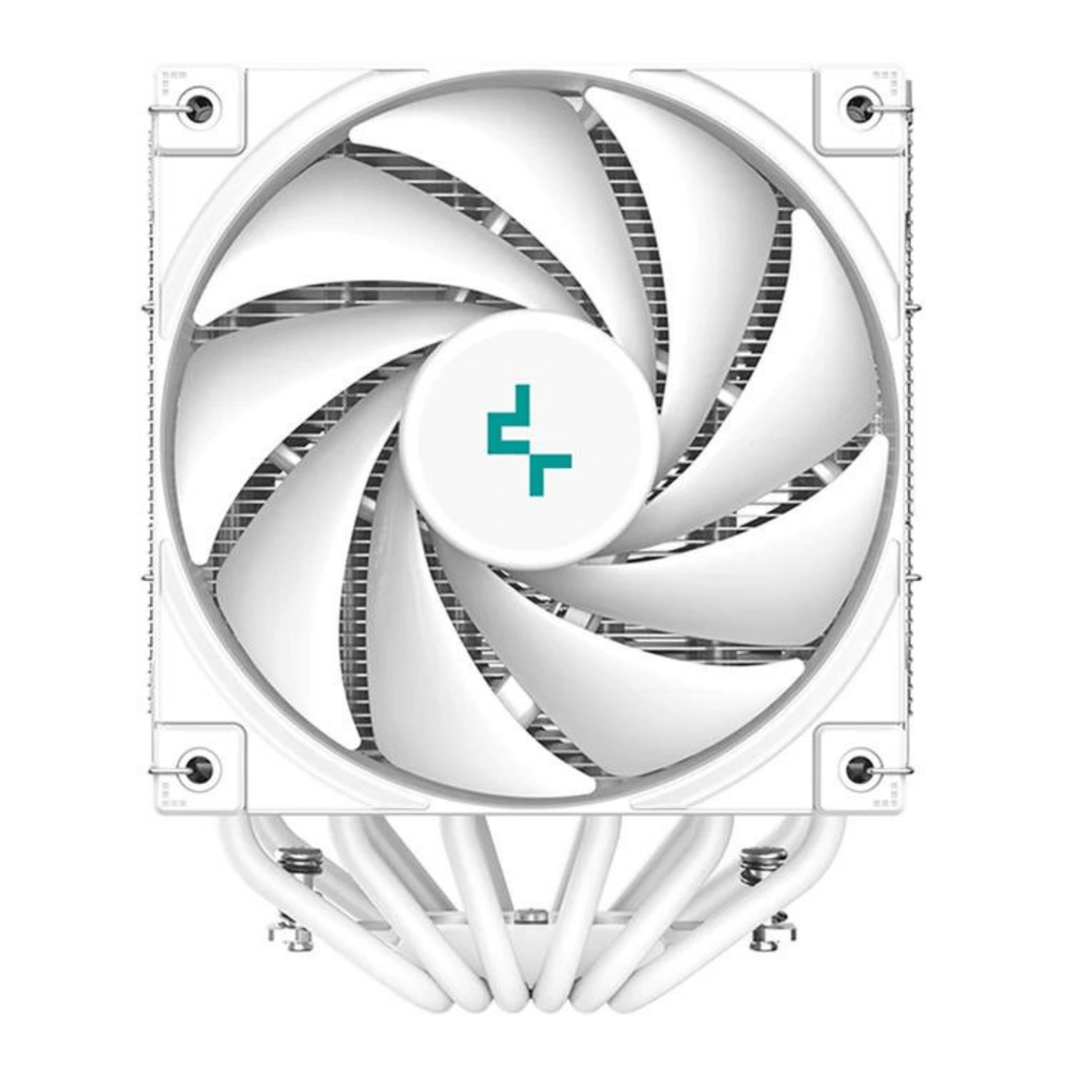

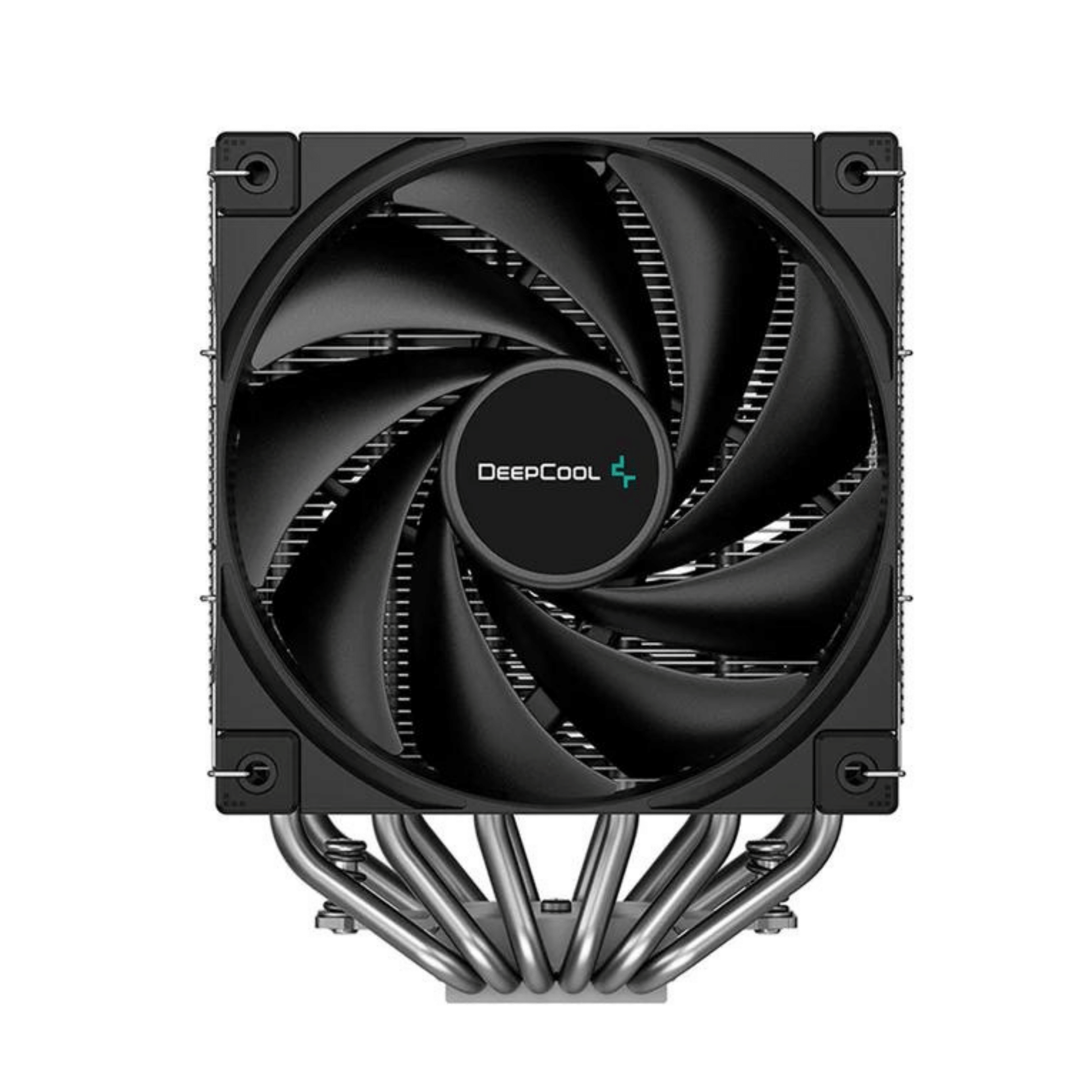

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
- 28 dBA: Full load noise
- 500-1850 RPM: Dynamic PWM Range
- 50,000 hours: Long operational lifespan

EXCEPTIONAL COOLING BY DESIGN

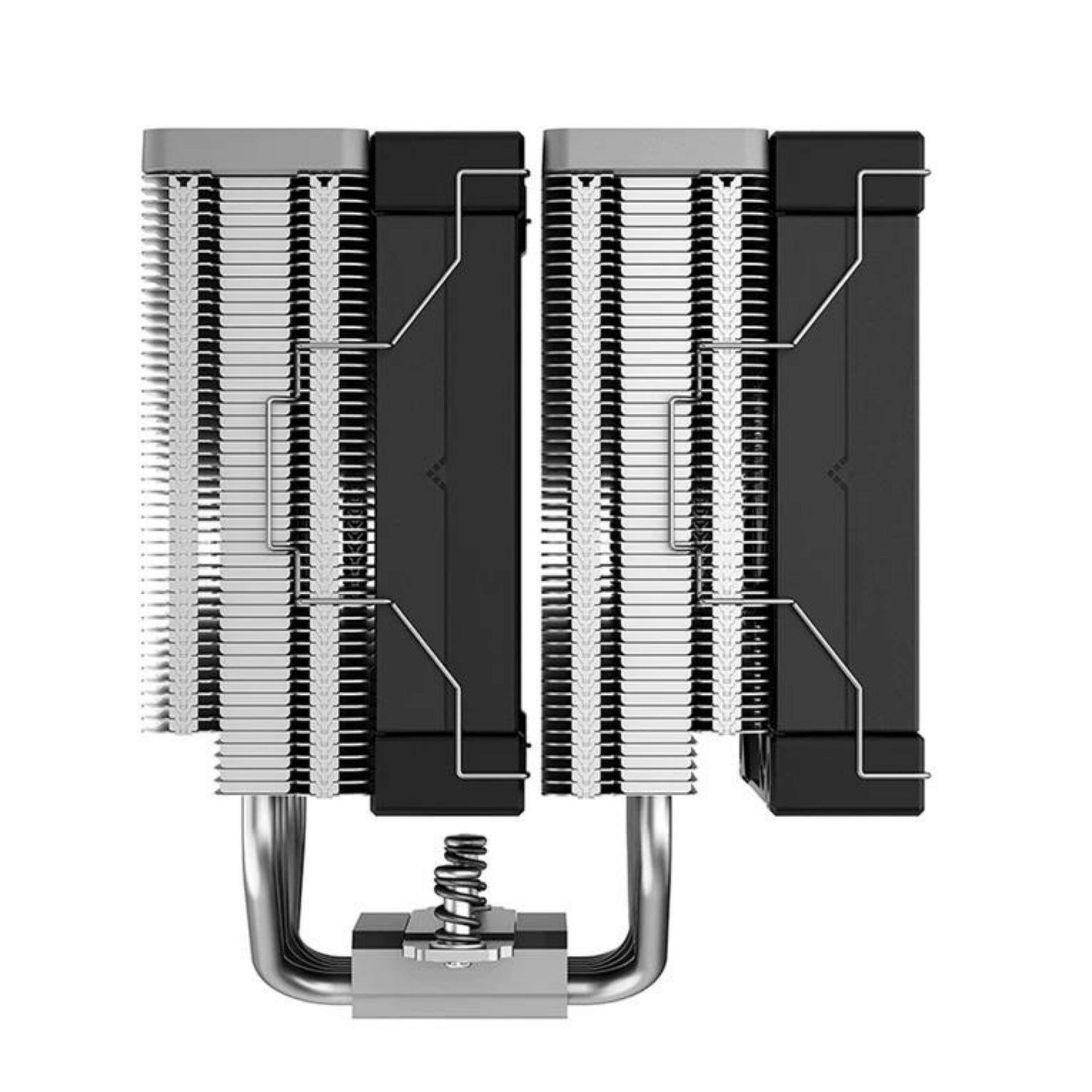

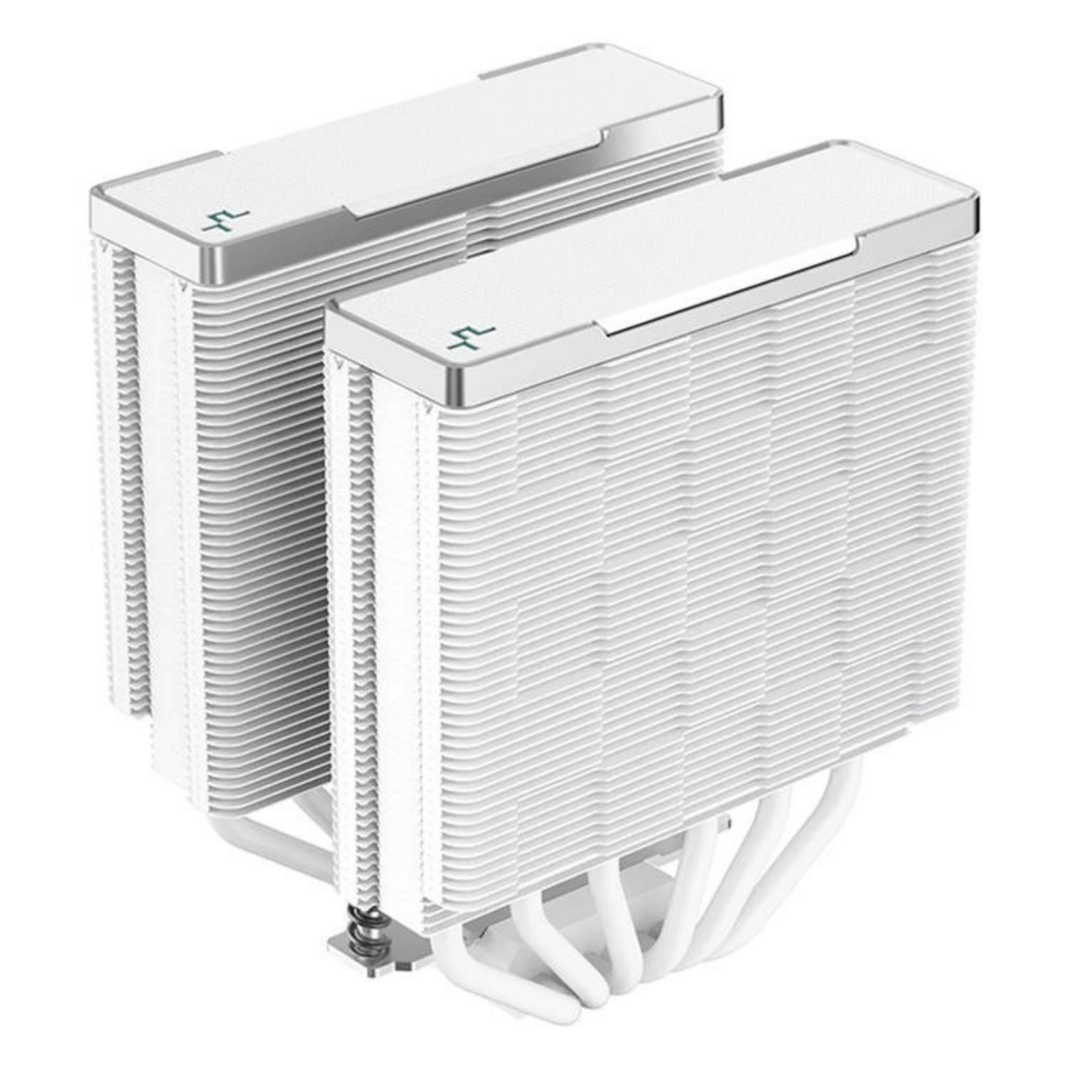

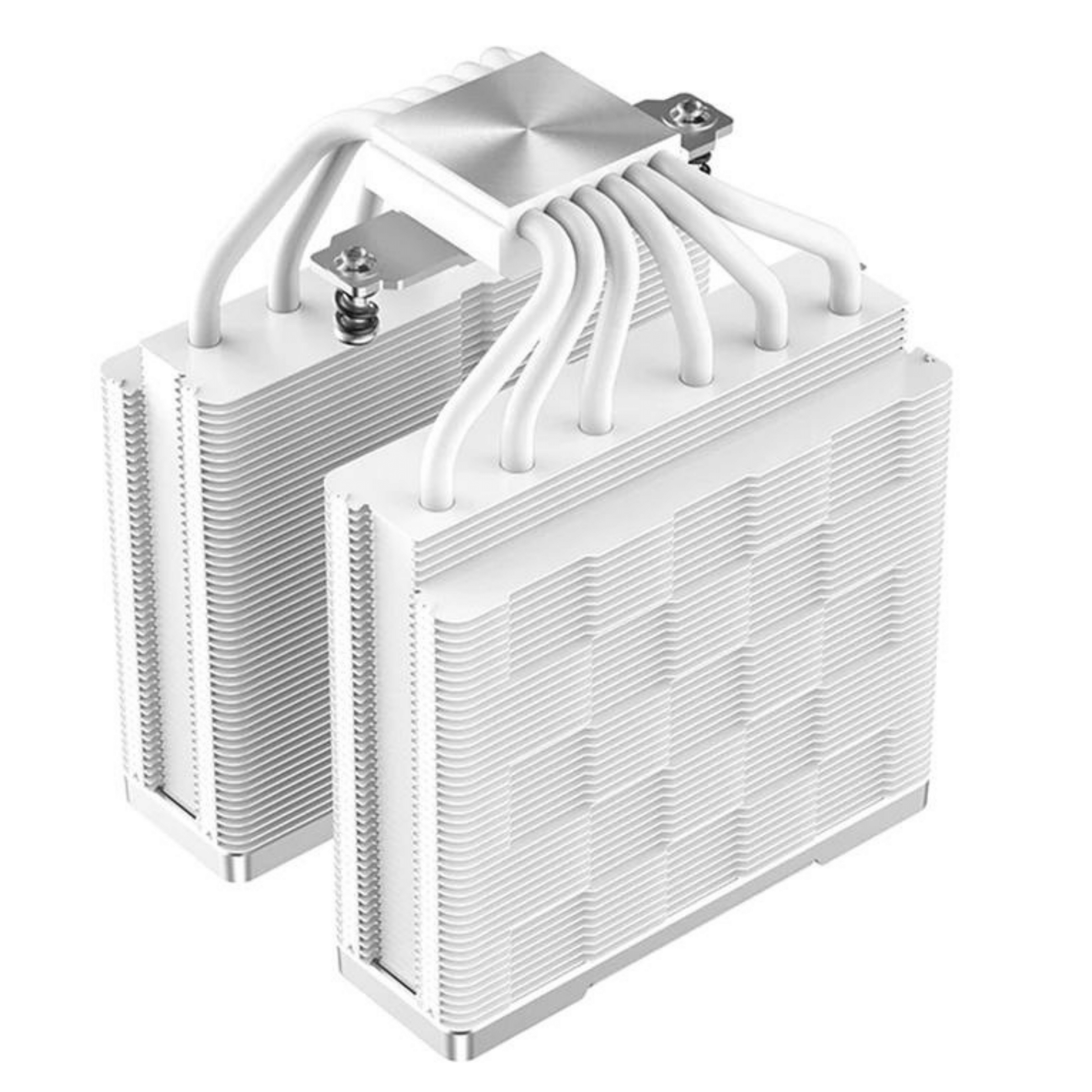

The AK620 features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
- 160mm Cooler height compatibility
- 43mm RAM height clearance* (*59mm in single fan configurations)

MULTI-PLATFORM SIMPLICITY

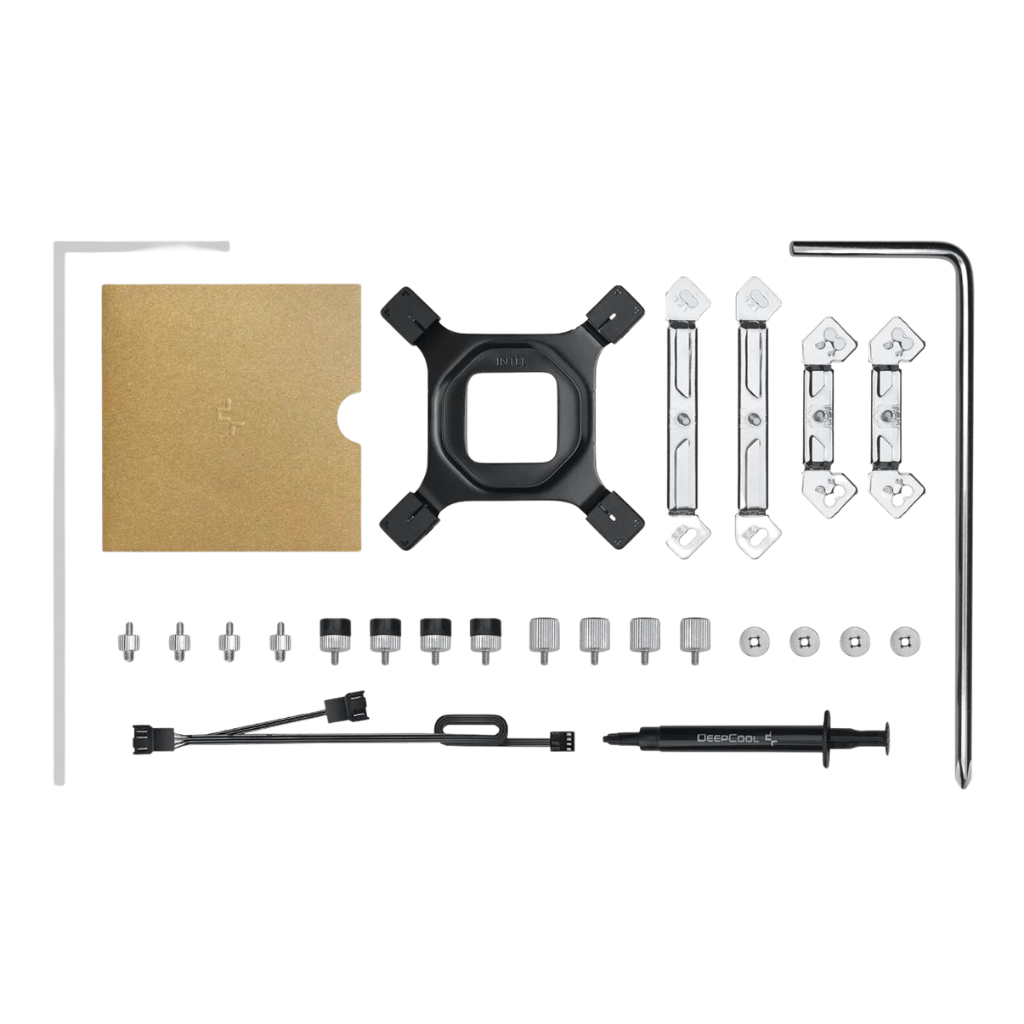

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Model

AK620

Model Number

R-AK620-BKNNMT-G

Socket Compatibility

Intel:

LGA1700 / 2066 / 2011-v3 / 2011 / 1200 / 1151 / 1150 / 1155
AMD:

AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

Heatsink Dimensions

127 x 110 x 157 mm

Heatpipe

6 mm diameter x 6 pcs

Fan Dimension

120 x 120 x 25 mm

Fan Speed

500~1850 RPM ± 10%

Fan Airflow

68.99 CFM

Fan Air Pressure

2.19 mmAq

Fan Noise

=28 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.12 A

Fan Power Consumption

1.44 W

Product Dimensions

129 x 138 x 160 mm

Weight

Net: 1.456 kgs
