Deepcool LS520 85.85 CFM Liquid CPU Cooler

• Fan Size: 120mm
• Fan Speed: 500 - 2250 RPM
• Radiator Size: 240mm
• Addressable RGB LED Lighting

LS520

Elite Performance

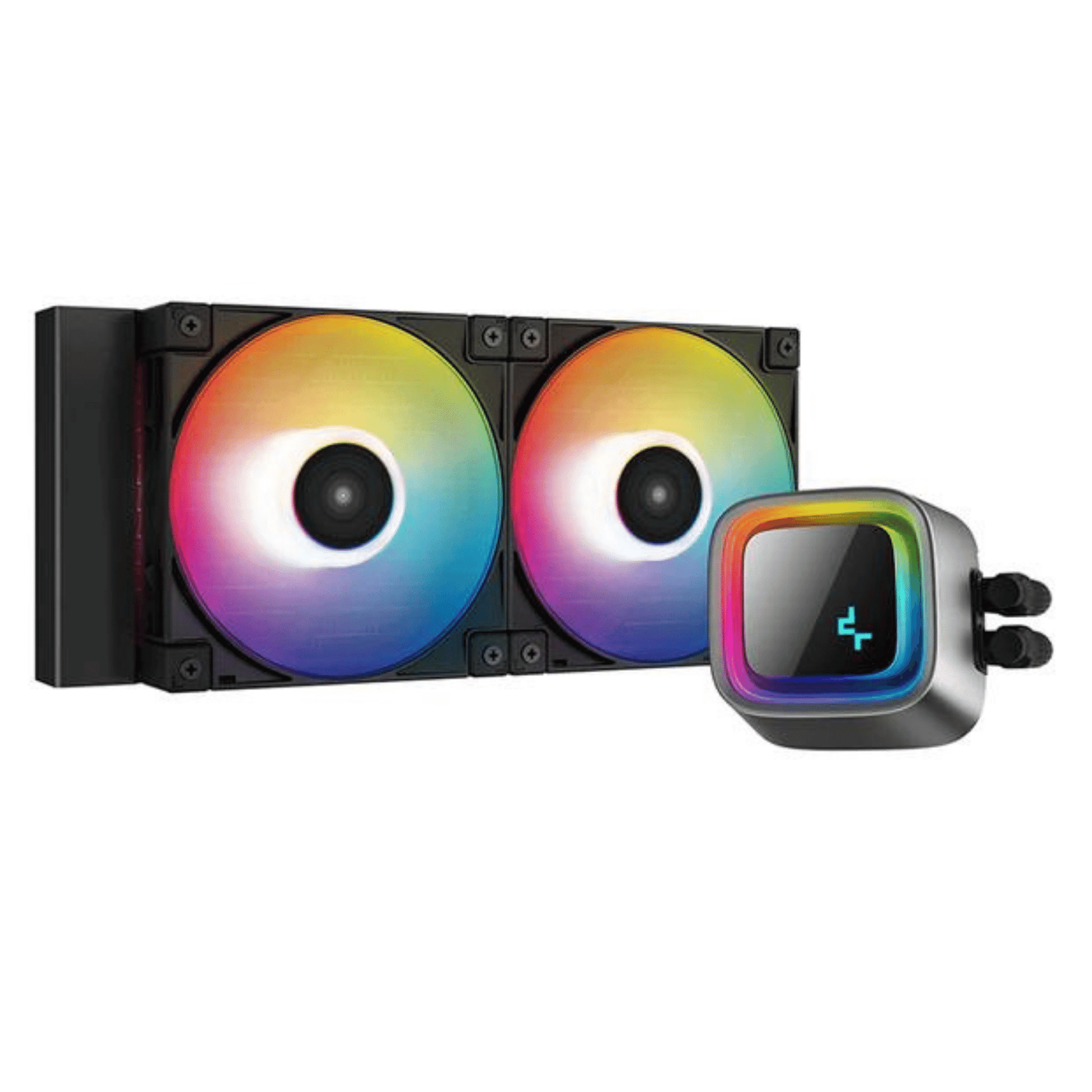

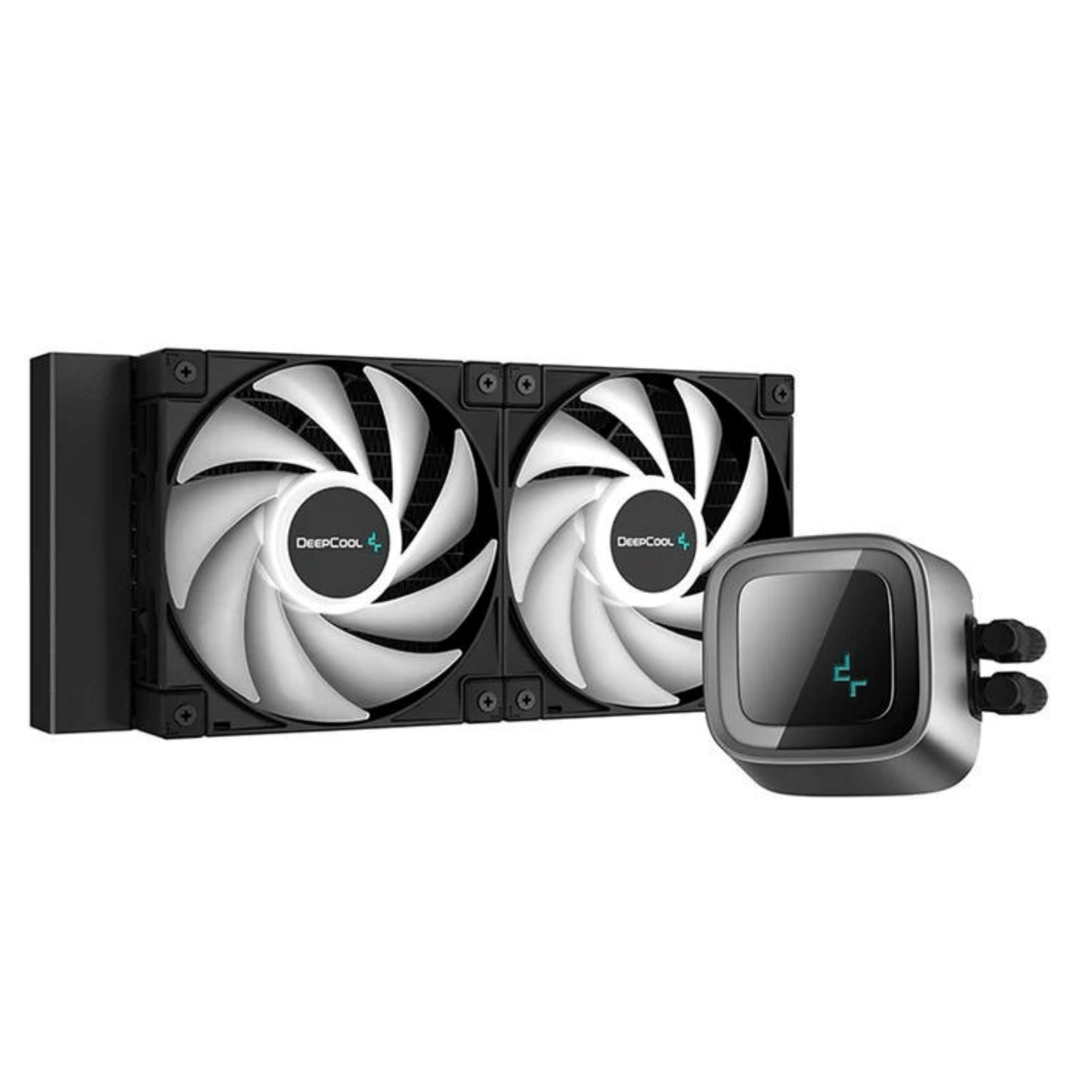

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.

A NEW ERA OF DEEPCOOL

Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved Microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.

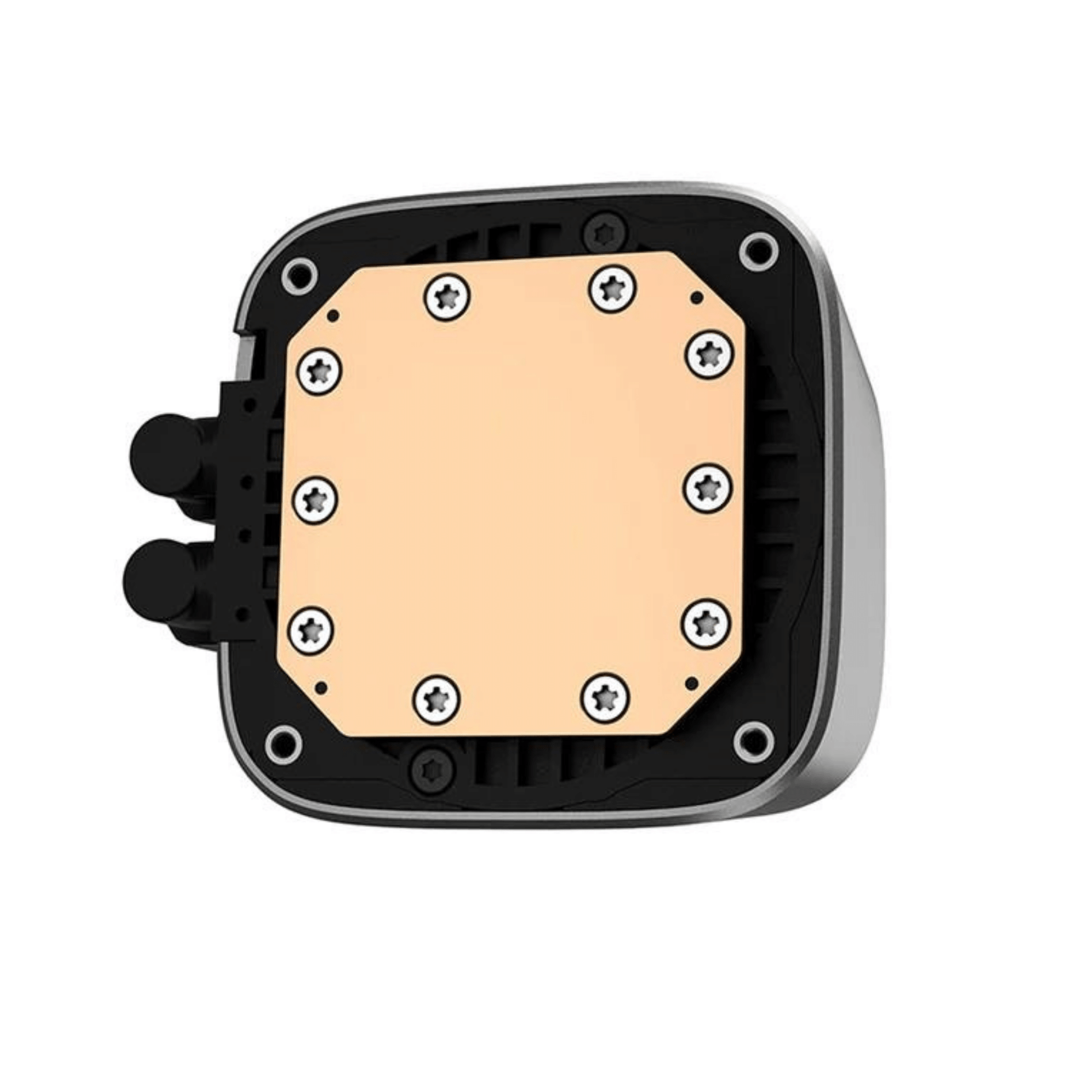

3. Thick solid copper base with a seamless match.

COOL AND QUIET

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
- 500~2250 RPM* - Dynamic PWM Range
- 85.85 CFM - Supreme Airflow
- =32.9 dB (A) - Full Load Noise
- 50,000 Hours - Long Operational Lifespan
*The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.

SIMPLE AND SECURE

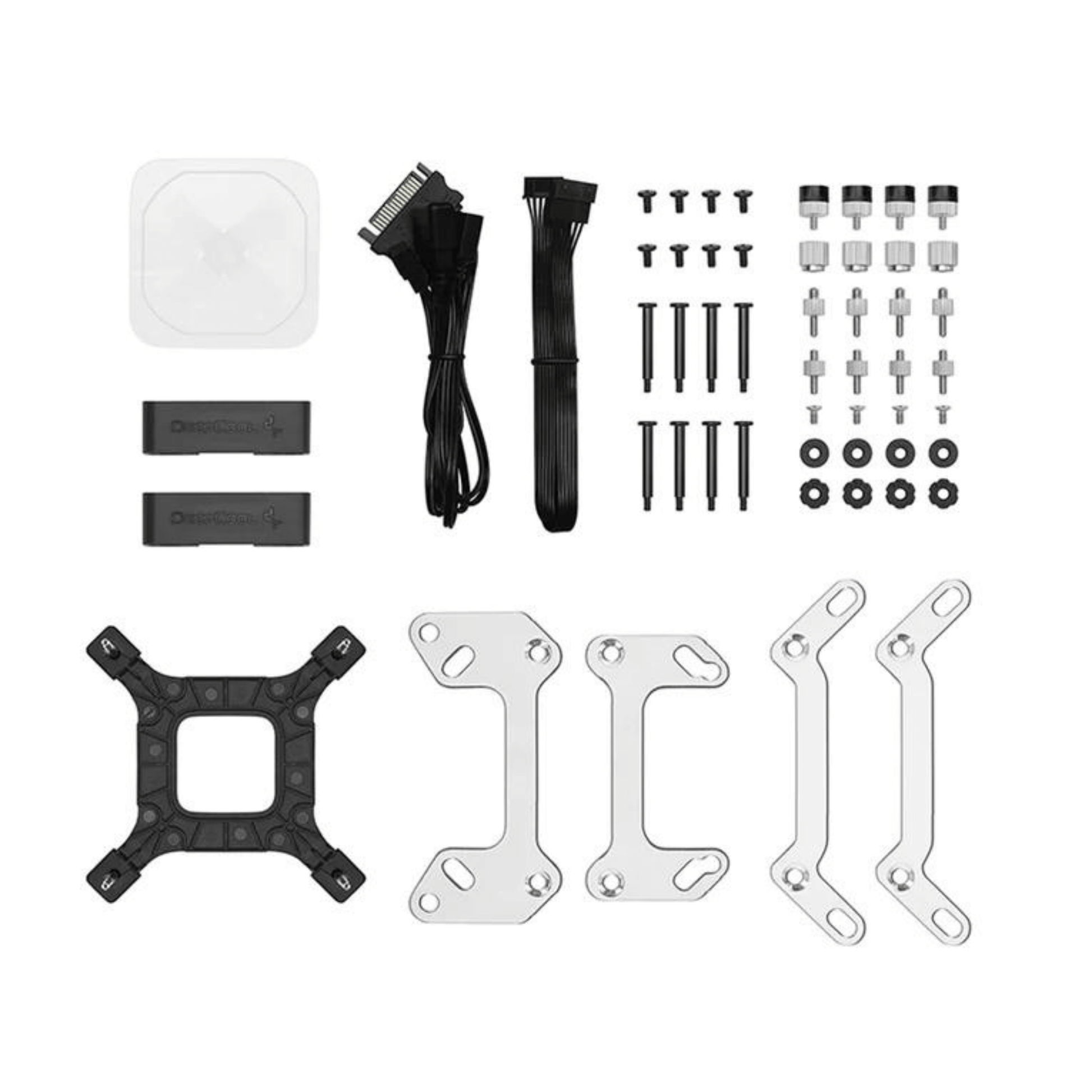

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.

CUSTOMIZE YOUR LOOK

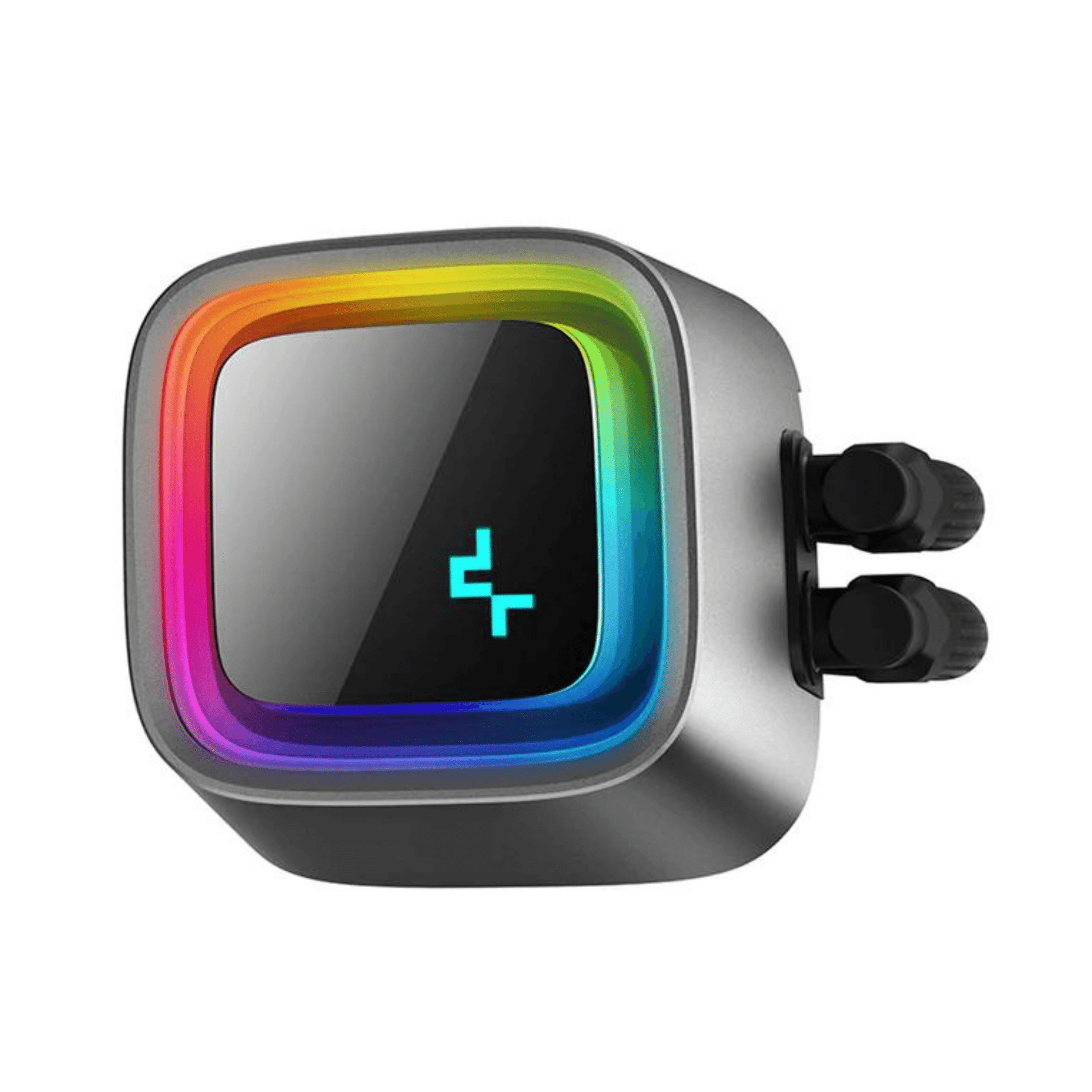

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.

SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS

Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.

Application For

Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4

Radiator Dimensions

282 x 120 x 27 mm

Radiator Material

Aluminum

Tube length

410 mm

Pump Dimensions

86 x 74 x 57 mm

Pump Speed

3100 RPM ± 10%

Pump Noise

19 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.47 A

Pump Power Consumption

5.64 W

Fan Dimensions

120 x 120 x 25 mm

Fan Speed

500~2250 RPM ± 10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

=32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.29 A

Fan Power Consumption

3.48 W

LED Type

Addressable RGB LED

LED Connector

3-pin (+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.2 W (PUMP)/ 3.6 W (2 x FAN)

Net Weight

1305 g
