Gigabyte A520I AC Mini ITX AM4

Brand

Gigabyte

Model Number

A520I AC

Motherboard Chipset

A520 Chipset (Ryzen AM4)

CPU Socket Type

AMD Socket AM4

Form Factor

Mini-ITX

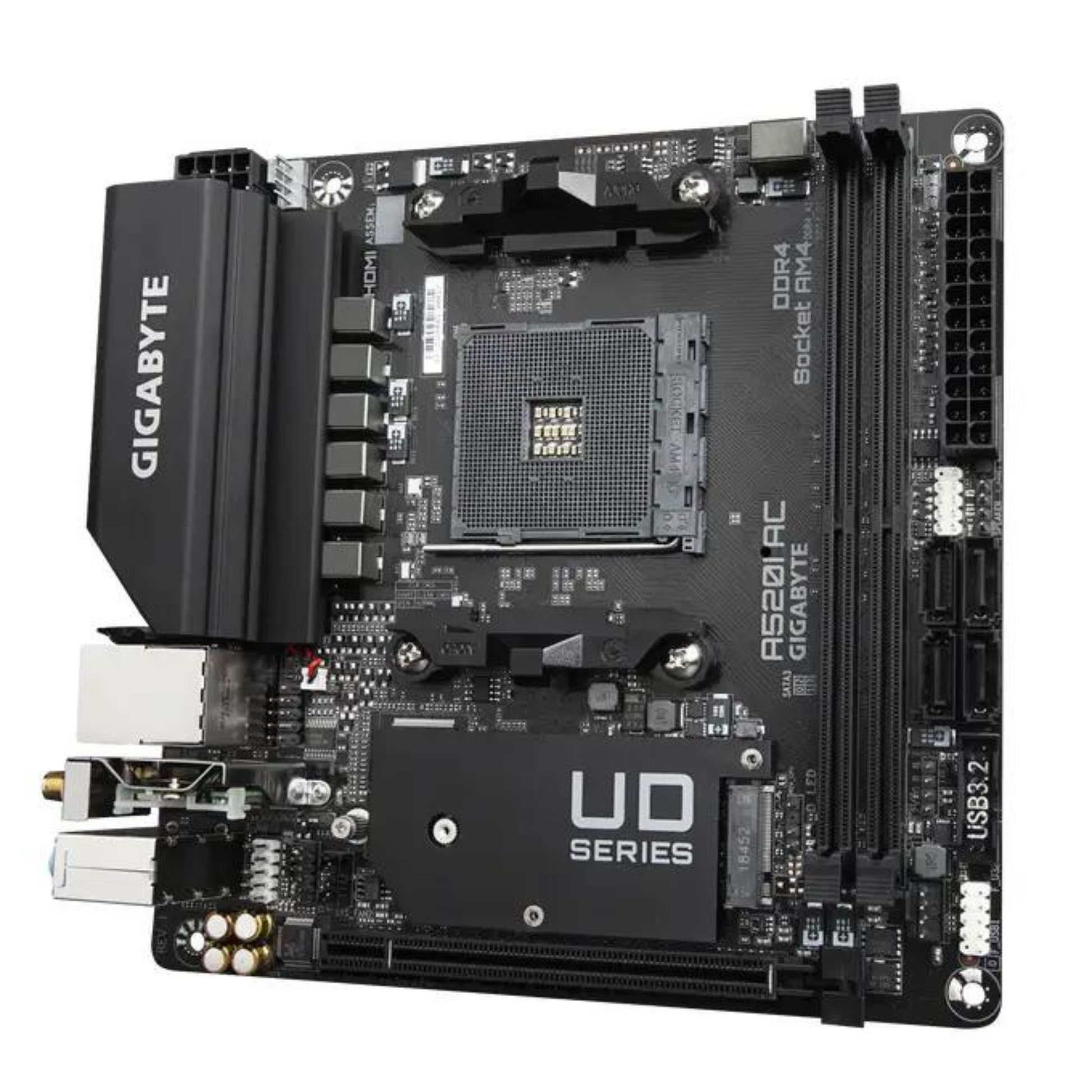

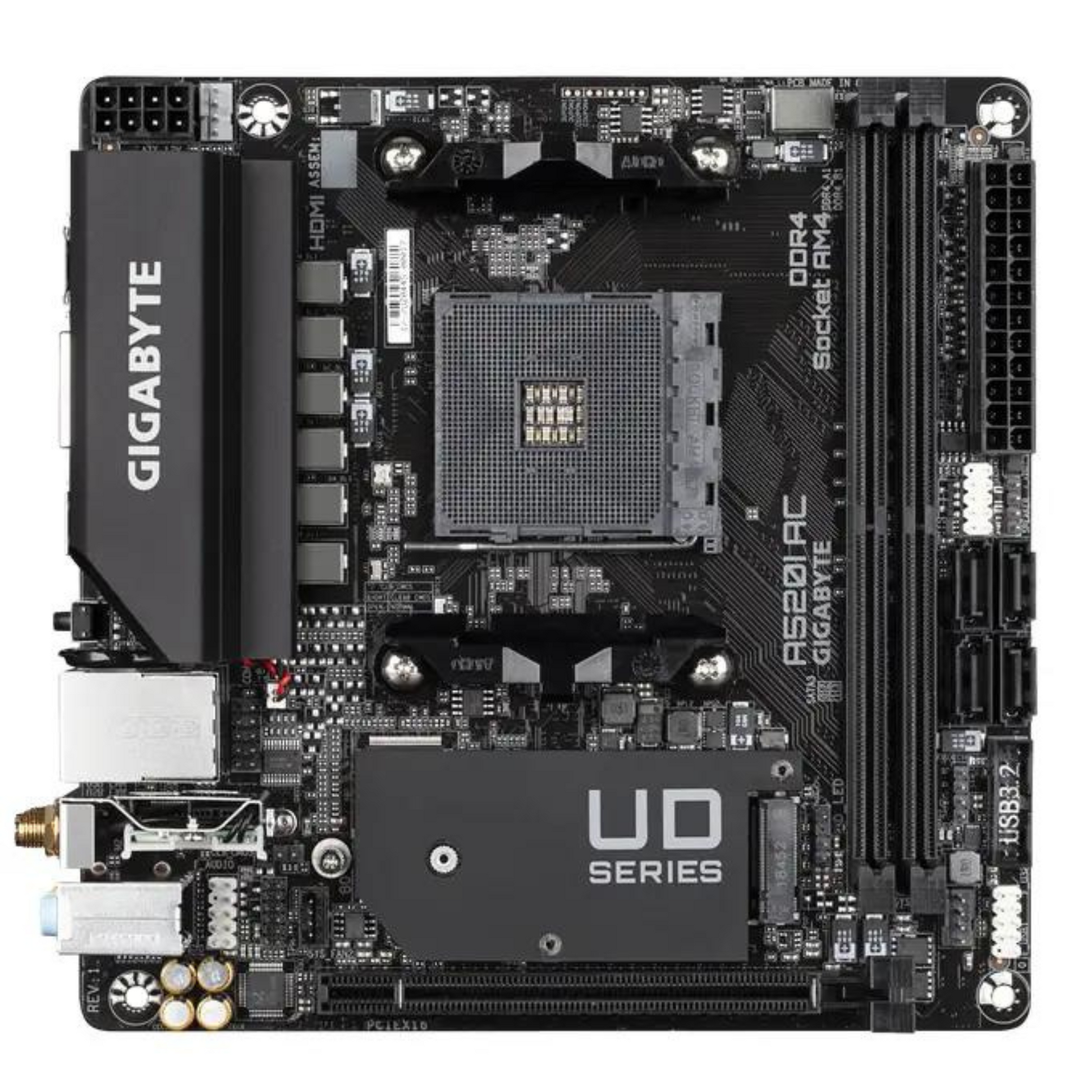

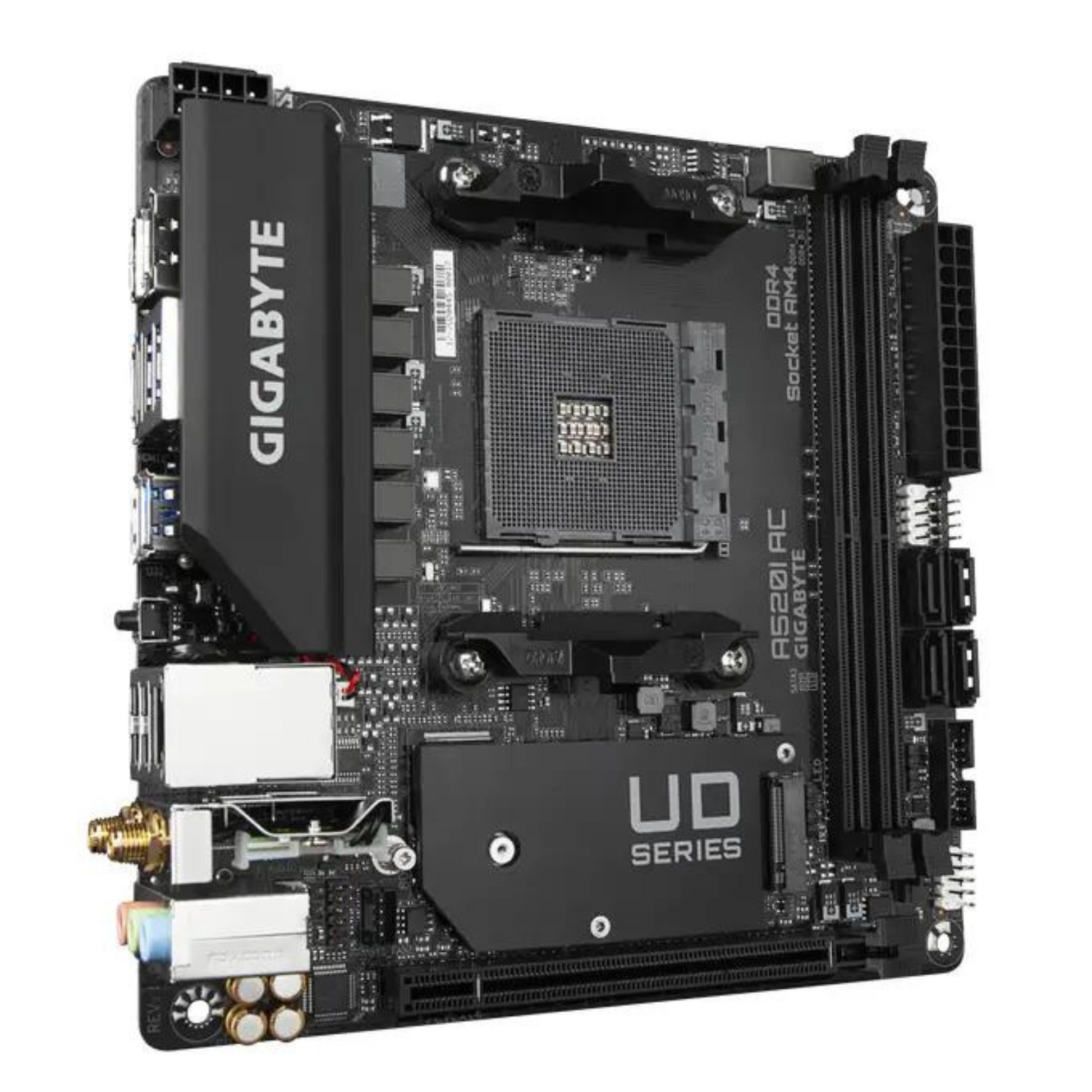

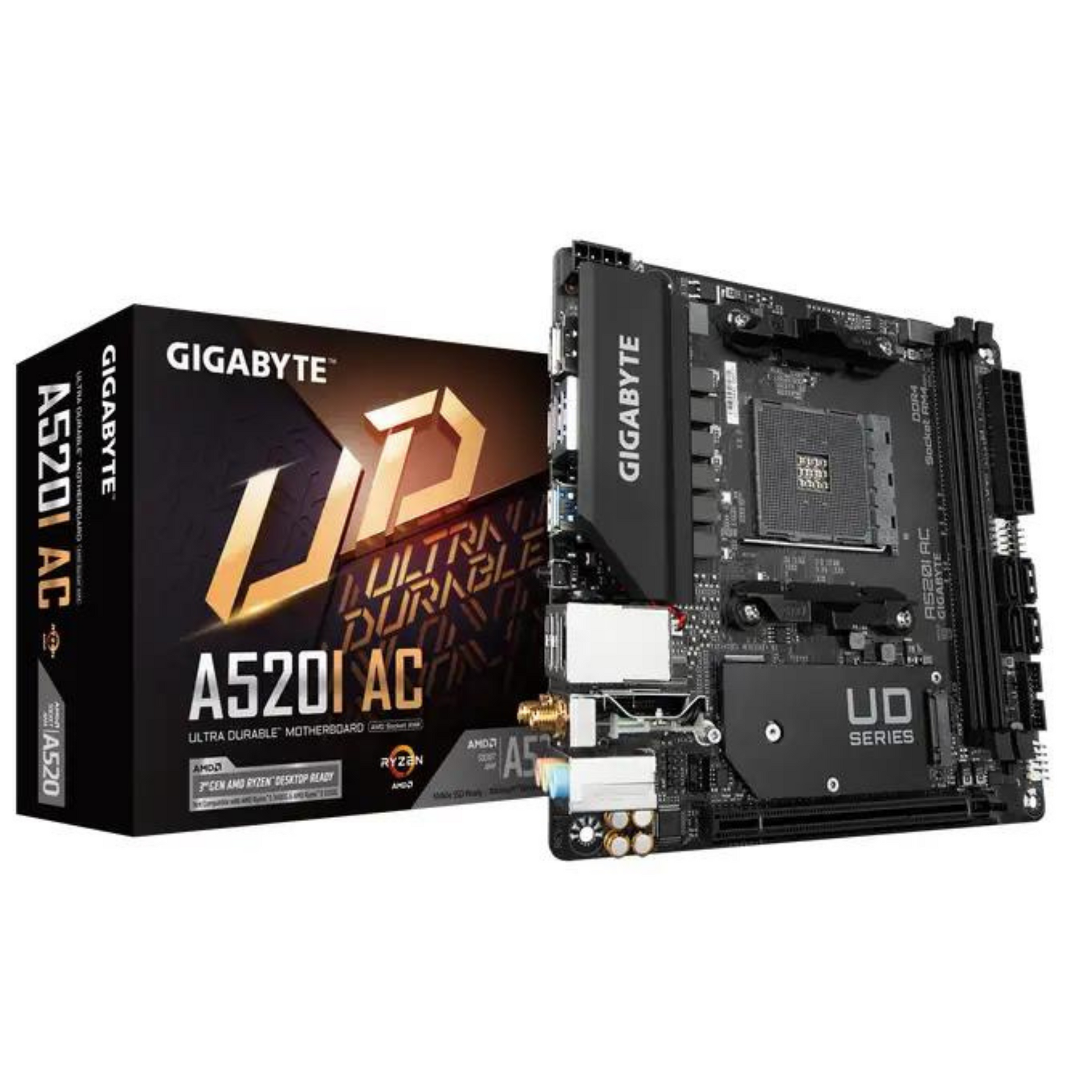

Gigabyte A520I AC ITX Motherboard

AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Direct 6 Phases Digital VRM Solution with 55A DrMOS
A520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

Faster and Better Coverage with Dual Band 802.11ac WIFI & BT4.2 Module
The onboard 802.11ac WIFI module from Intel® supports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2.
The brand new of Ultra Durable™ Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location.

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

RGB FUSION 2.0
With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.

CPU

• AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
• (Please refer "CPU Support List" for more information.)

Chipset

• AMD A520

Memory

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• 3rd Gen AMD Ryzen™ Processors:
• Support for DDR4 5100(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
• Support for DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)

Onboard Graphics

• Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
• 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
• * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Support for up to 3 displays at the same time
• Maximum shared memory of 16 GB

Audio

• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings < Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Wirless

• Intel® Wi-Fi AC 3168
• WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 4.2
• Support for 11ac wireless standard and up to 433 Mbps data rate
• * Actual data rate may vary depending on environment and equipment.

LAN

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Storage Interface

• CPU:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

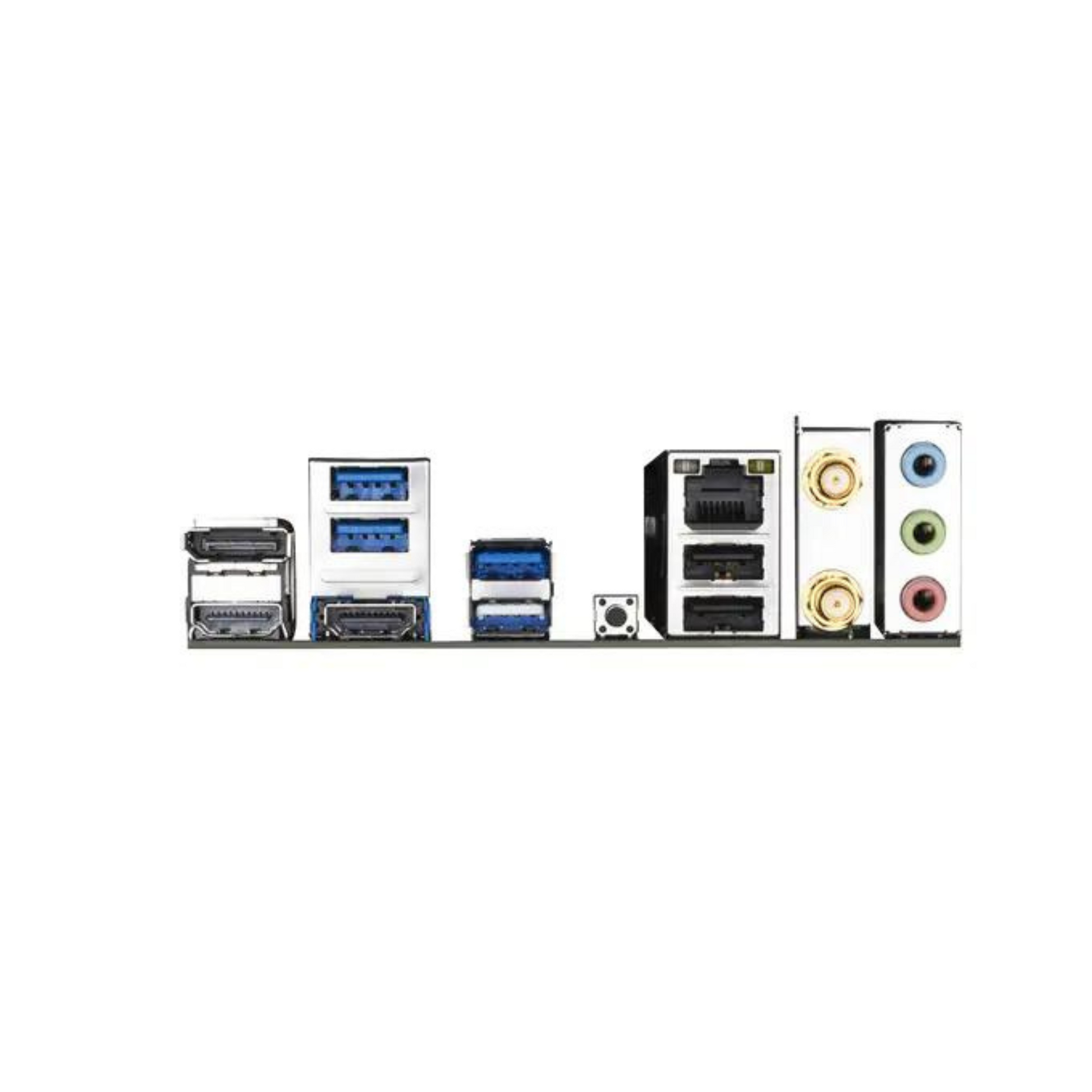

• 1 x DisplayPort
• 2 x HDMI ports
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 ports
• 2 x SMA antenna connectors (1T1R)
• 3 x audio jacks
• iTE® I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN Bandwidth Control Utility

• Form Factor
• [#bl]Mini-ITX Form Factor; 17.0cm x 17.0cm
