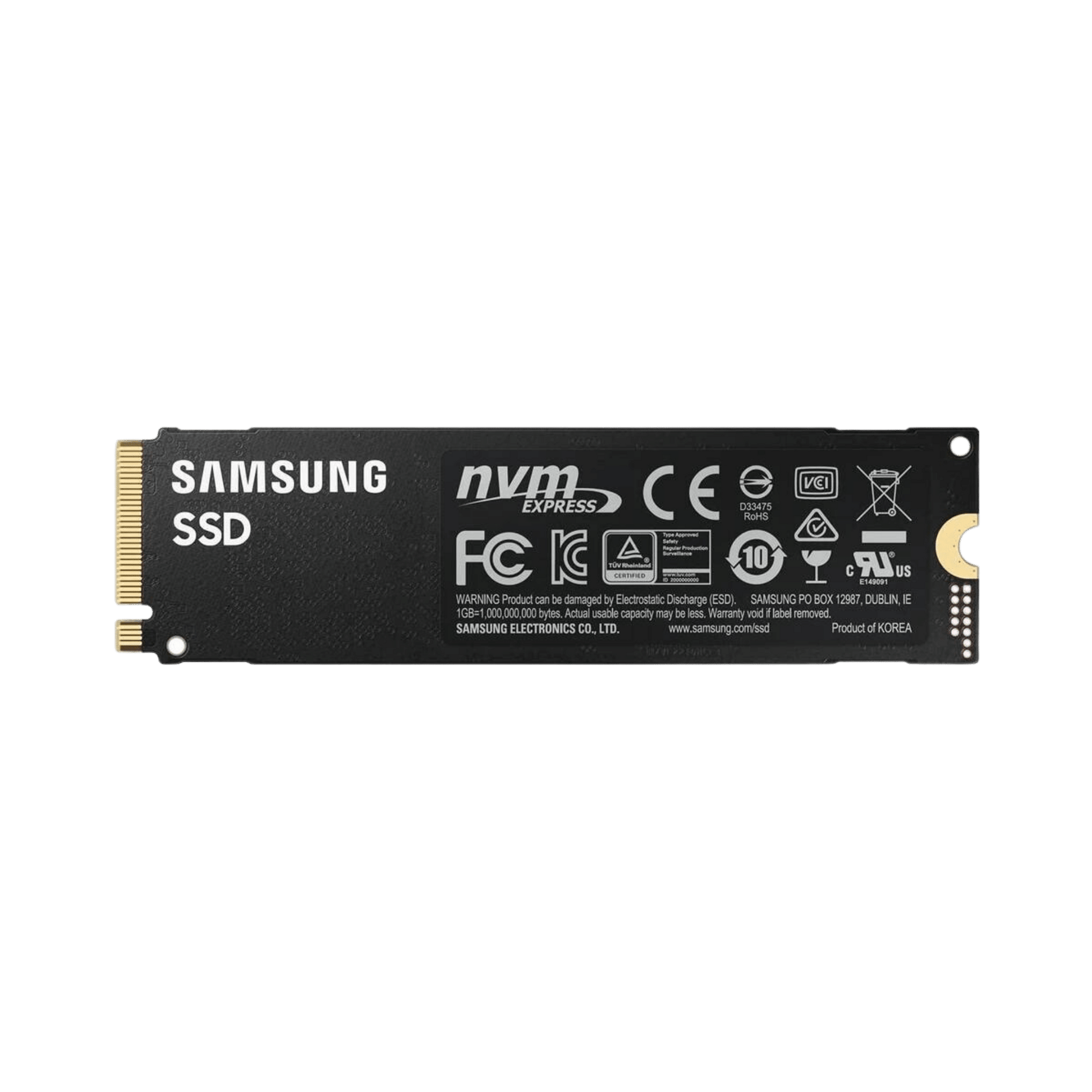

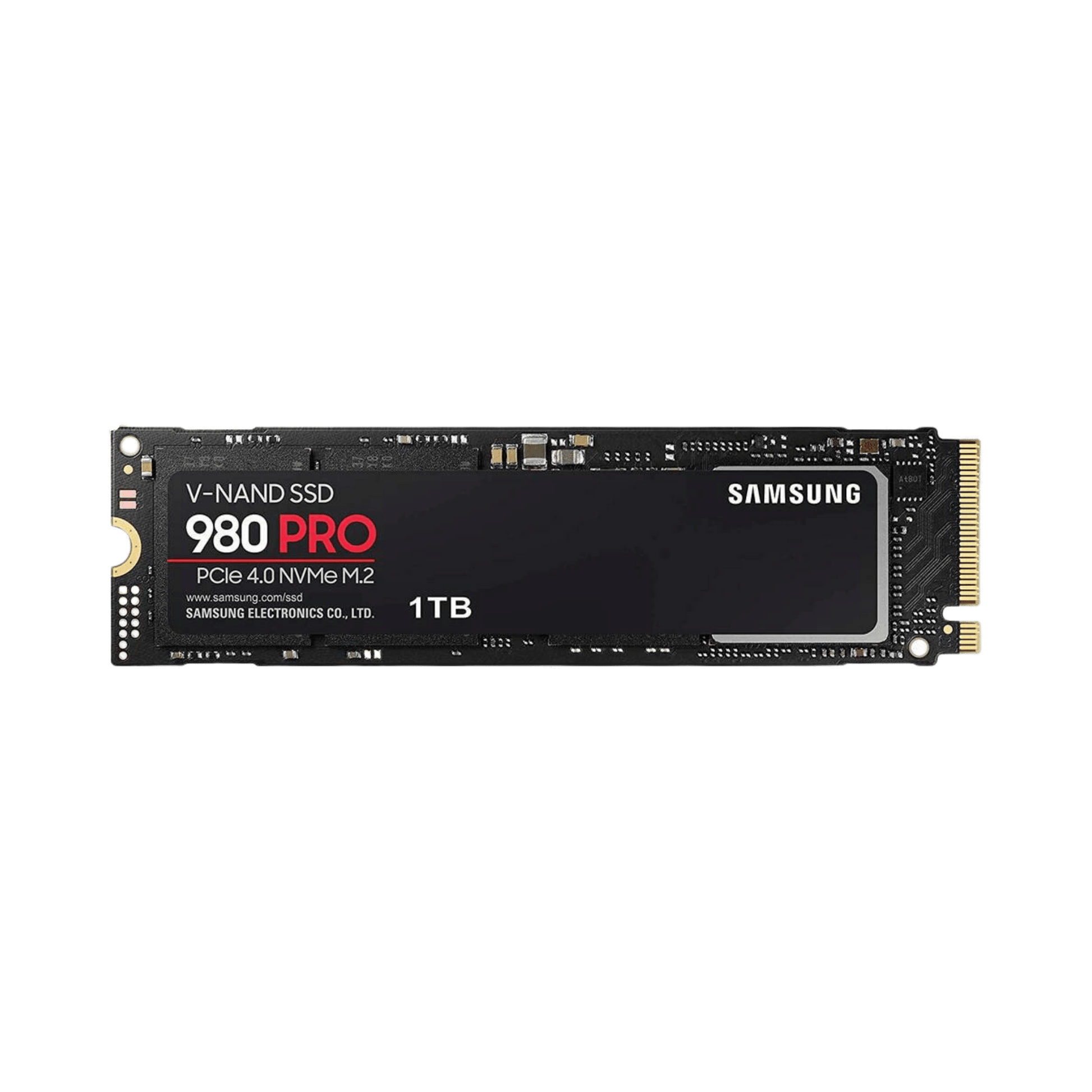

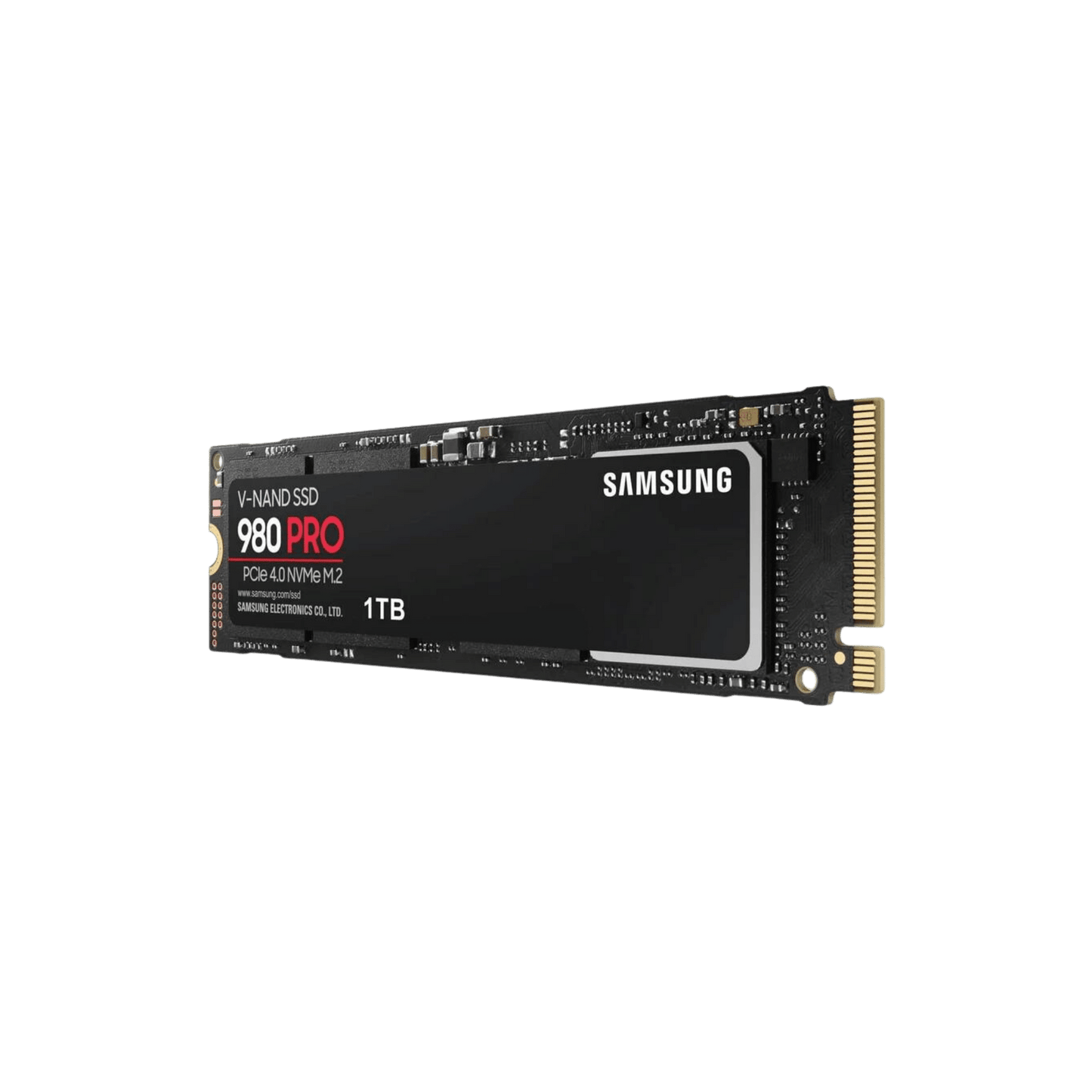

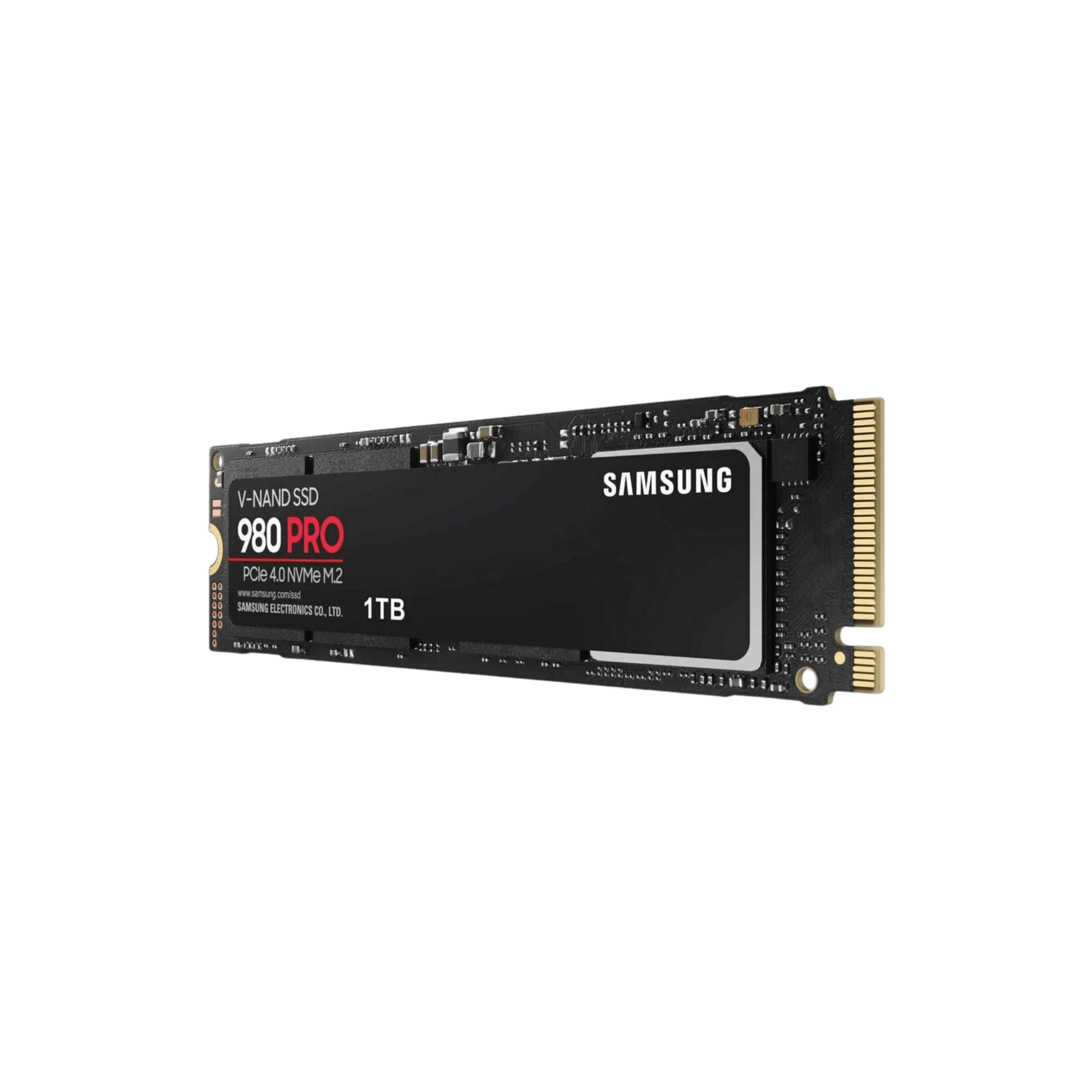

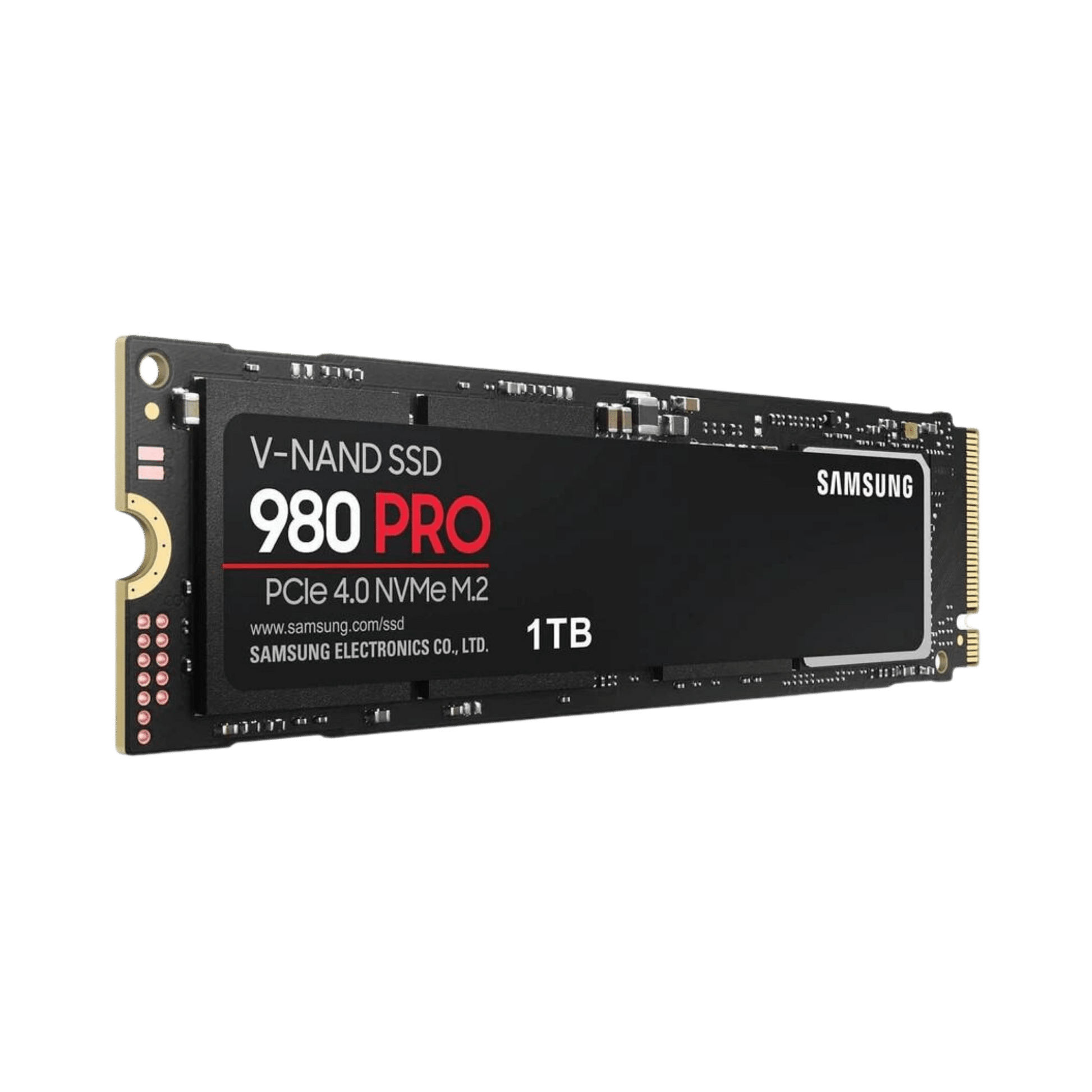

Samsung 980 Pro 1 TB M.2-2280 PCIe 4.0 X4 NVMe

• Series: Samsung 980 PRO
• Capacity Range: 960 - 1000 GB
• Capacity: 1 TB
• Form Factor: M.2 2280
• Interface Type: PCI Express
• Interface: PCIe 4.0 x4
• Controller: Samsung Elpis
• Read: Up to 7000 MB/s
• Write: Up to 5000 MB/s
• Max Random 4K R/W: "1000000 IOPS / 1000000 IOPS"
• Power Consumption: Average: 6.2 W
  Maximum: 8.9 W (Burst mode)
• Weight/Dimensions: 9 g
  80.15 x 22.15 x 2.38 mm
• Shock Resistance: "1500 G & 0.5 ms (Half sine)"
• MTBF: 1.5 Million Hours
• Total Bytes Written (TBW): 600TBW
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0790 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)

Next Level Performance

Release the potential of the Samsung SSD 980 PRO Samsung's first consumer PCIe 4.0 NVMe SSD for superior computing experiences. Designed for graphics-intensive games and heavy-duty applications the 980 PRO leverages Samsung's custom controller and PCIe 4.0 to provide double the data transfer rate of PCIe 3.0 while backward compatibility and its compact M.2 form factor provide versatility and flexibility for various high-performance computing solutions.

Optimised Power for High-End Systems

Designed with hardcore gamers and tech-savvy users in mind the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming graphics data analytics and more. It's fast at loading games so you can play more and wait less.

Durable Nickel Coating

Thanks to its robust nickel coating it helps manage the controller's heat level and includes a heat spreader label to deliver effective thermal control of the NAND chip.

Dynamic Thermal Guard

Embedded with Samsung's cutting-edge thermal control algorithm the 980 PRO manages heat on its own to deliver a reliable performance. To diminish performance fluctuations in the long haul Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.

Optimised Power for High-End Systems

The 980 PRO comes in a compact M.2 2280 form factor which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimized power efficiency.

Unlock the Full Power of the 980 Pro

Samsung Magician's intuitive yet advanced optimization tools can monitor drive health optimize performance protect valuable data and receive important updates to ensure you're always getting the best performance out of your SSD.

Quality you can Trust

Experience true reliability with Samsung the world's favourite brand for flash memory since 2003. Samsung's world-renowned DRAM and NAND are produced in-house allowing end-to-end integration for quality you can trust.

Interface

PCIe 4.0 x4 (NVMe)

Device Type

Solid state drive - internal

Capacity

1 TB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

Form Factor

M.2 2280

Buffer Size

1 GB

Features

TRIM support, sleep mode, Auto Garbage Collection Algorithm, TurboWrite Technology, Low Power DDR4 SDRAM Cache, NVM Express (NVMe) 1.3c, Samsung V-NAND 3bit MLC Technology, Samsung Elpis Controller, S.M.A.R.T.

Width

22.15 mm

Depth

80.15 mm

Height

2.38 mm

Weight

9 g

Compatibility Information

Designed For

Intel Next Unit of Computing 12 Enthusiast Mini PC - NUC12SNKi72VA, 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7

Performance

SSD Endurance

600 TB

Internal Data Rate

7000 MBps (read) / 5000 MBps (write)

4KB Random Read

22000 IOPS

4KB Random Write

60000 IOPS

Maximum 4KB Random Write

1000000 IOPS

Maximum 4KB Random Read

1000000 IOPS

Reliability

MTBF

1,500,000 hours

Expansion & Connectivity

Interfaces

PCI Express 4.0 x4 (NVMe) - M.2 Card

Compatible Bay

M.2 2280

Power

Power Consumption

6.2 Watt (average) ¦ 8.9 Watt (maximum) ¦ 0.035 Watt (idle)

Software & System Requirements

Software Included

Samsung Magician Software

Miscellaneous

Compliant Standards

IEEE 1667

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Shock Tolerance (operating)

1500 g @ 0.5 ms
